Motorized Single-axis Table

Home > Motorized Linear Actuators > Low Cost Linear Single-axis Stages

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 500 mm of travel at a Maximum Speed with Stepper Motor of 40 mm per second. The drive mechanism is lead screw.

The bench size is 160 x 160 mm and has a body weight of 8.3 Kg.

The maximum load of this stage table is 50 Kg.

The resolution of 2.0 microns is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a Three Phase Brushless Servo Motor and Optical Encoder (-02 Version) or DC Servo Motor and Optical Encoder (-03 Version).

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder (-04 Version) for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick and keypad control.

Video Demonstration

Specifications

Type

AQ140-500

Structure Description

Travel

500 mm

Stage Size

160 x160 mm

Lead Screw Pitch

5 mm per turn

Travel Guide

High Precision Linear Ball Bearing

Two-Phase Stepper Motor (1.8 Deg)

Typical Phase Resistance

2.0 Ohms, Bi-directional

Typical Phase Current

2 Amps

DB-9 Male Connector

Pin Assignment and Description

1	+5 VDC
2	Near Motor Limit Switch Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor
3	Far End Limit Switch Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor
4	Common
5	Not Connected
6	Stepper Motor Phase A+
7	Stepper Motor Phase A-
8	Stepper Motor Phase B+
9	Stepper Motor Phase B-

Body Material

Aluminum Alloy

Surface Treatment

Black Anodized

Load Capacity

50 Kg

Weight

8.3 kg

Typical Accuracy

Resolution

2.5 microns with 10 Micro-steps per Step Motor Driver in use

1.25 microns with 20 Micro-steps per Step Motor Driver in use

Maximum Speed with Stepper Motor

80 mm/sec

Maximum Speed with Servo Motor

Positioning Accuracy

10 microns

Accessories Description

Optical Encoder (-04 Version)

Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)
DC Servo Motor and Optical Encoder (-03 Version)

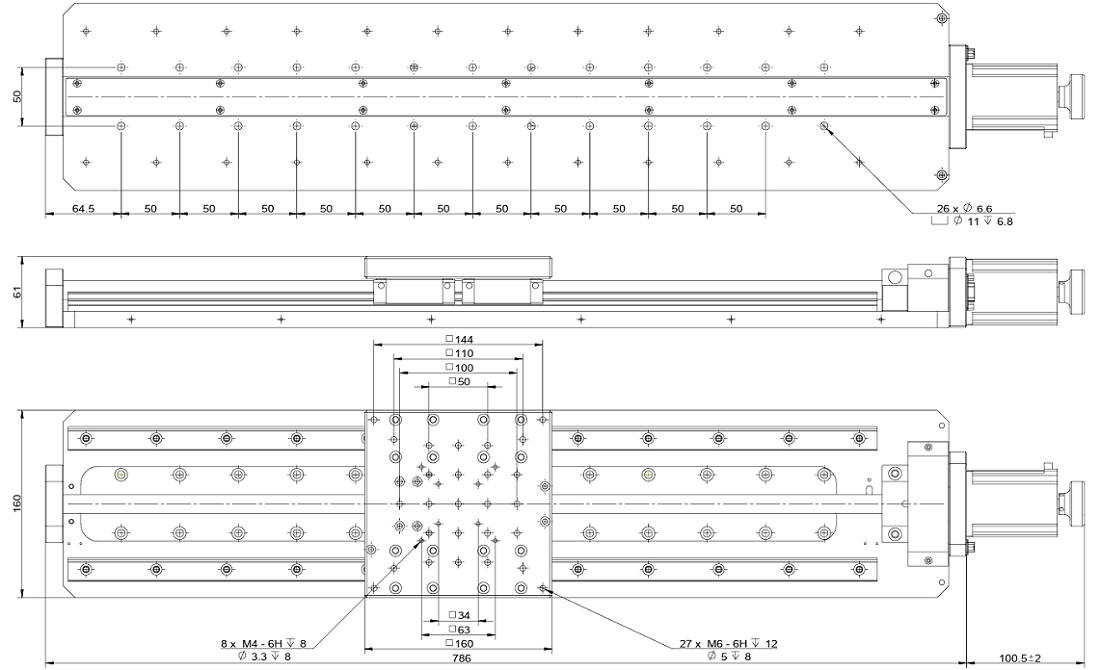

Stepper Motor Driven Mechanical Drawing

Click to get the STEP file

Ordering Information

Part No.	Description	Amount
AQ140-500-01	Stepper Motor Driven Linear Single-axis Stage, Travel : 500 mm	Click to Get a Quote
AQ140-500-02	Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage, Travel : 500 mm	Click to Get a Quote
AQ140-500-03	DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage	Click to Get a Quote
AQ140-500-04	Stepper Motor Driven Linear Single-axis Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor	Click to Get a Quote
