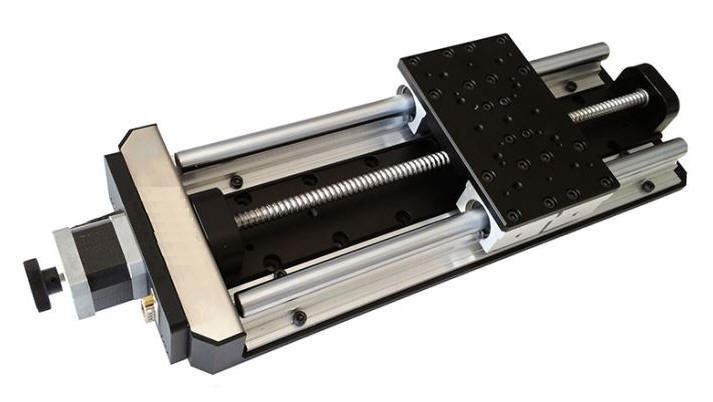

Motorized Single-axis Stage, Travel  : 100 mm

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 300 mm of travel at a Maximum Speed with Stepper Motor of 40 mm per second. The drive mechanism is lead screw.

The bench size is 150 X 100 mm and has a body weight of 5.5 Kg.

The maximum load of this stage table is 30 Kg.

The resolution of 2 microns is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder (-04 Version) for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.


Video Demonstration

Specifications

Type

AQ130-300

Structure Description

Travel

300 mm

Stage Size 150x100 mm
Lead Screw Pitch  4 mm per turn
Travel Guide

High Precision Linear Ball Bearing

Motor Two-Phase Stepper Motor (1.8 Deg)
Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 30 kg
Weight 6.6 kg (14.5 lb)

Typical Accuracy

DB9 Male pinout
Two-Phase Stepper Motor Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Far End Limit Switch Limit Switch when the table moves away from the motor, Open Collector, Normally Open, Needs Pull up Resistor (1000 Ohms)
3 Near Motor Limit Switch Limit Switch, when the table moves towards the motor Open Collector, Normally Open, Needs Pull up Resistor (1000 Ohms)
4 Return for+5 VDC
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Resolution Control Electronics Dependent, 2 microns with 10 Micro-steps per Step Motor Driver in use
1 micron with 10 Micro-steps per Step Motor Driver in use



Maximum Speed with Stepper Motor 25 mm/sec
Maximum Speed with Servo Motor
Positioning Accuracy 10 microns

Accessories Description

Optical Encoder (-04 Version)
Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

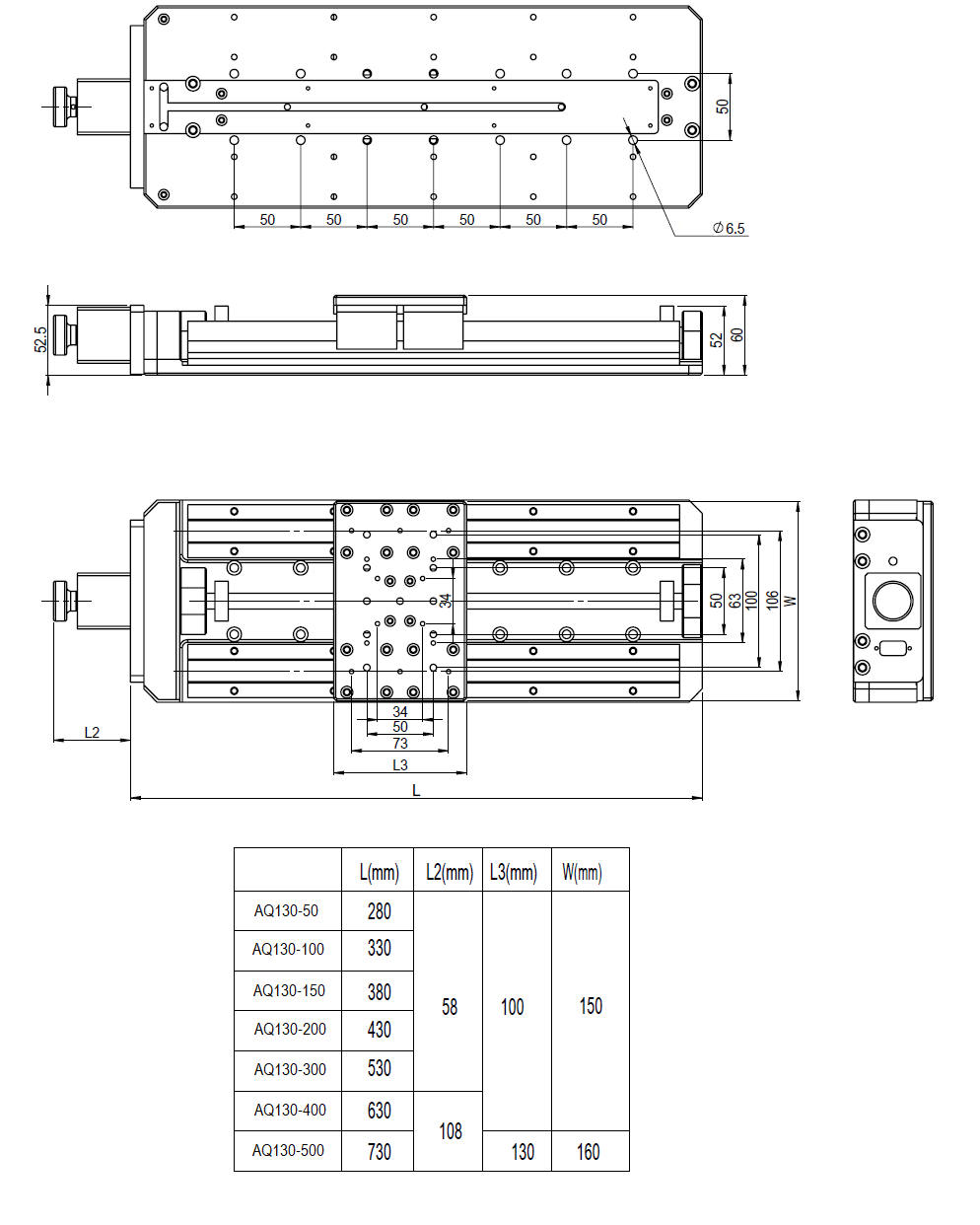

Stepper Motor Driven Mechanical Drawing


Click to get the STEP file

 Ordering Information

Part No. Description Amount
AQ130-300-01 Stepper Motor Driven Linear Single-axis Stage, Travel  : 300 mm Click to Get a Quote
AQ130-300-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage, Travel  : 300 mm Click to Get a Quote
AQ130-300-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage Click to Get a Quote
AQ130-300-04 Stepper Motor Driven Linear Single-axis Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor Click to Get a Quote

Photo Motion Controllers
