Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion X-axis

Manual Linear Positioning Stage Picture

MC1B-25 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 25x25 mm and have a body weight of 0.09.

The maximum load of these feed screw tables is 3 kg.

The stroke of travel is +/- 17 mm.

The straightness accuracy is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Travel Distance per
Rev. of Knob Minimum reading
indicator

MC1D-25
25 by 25 30 micron 3.0 0.09 Brass alloy Black fluororesin finished +/- 5 17 0.1mm/indicator

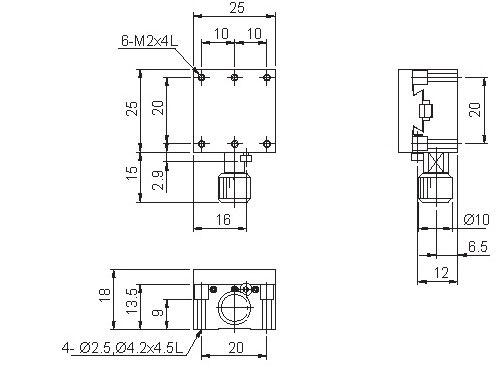

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MC1D-25

Ordering Information

Part No.	Description	Amount
MC1D-25	Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-5	Click to Get a Quote
