Manual Dual-axis Super Thin Linear Positioning Stage
MYW40-AS

Home >  Manual Stages > Crossed Roller Stages > Super Thin Stages

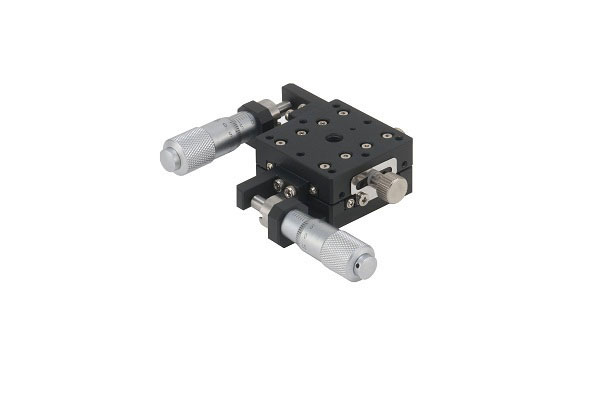

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual dual-axis super thin linear is made of aluminum alloy with an elegant black anodized coating..

The bench size is 40 X 40 mm has a body weight of 0.2 kg.

It provides side type of feed position.

The maximum load of this super thin table is 1 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MYW40-AS

40 mm by 40 mm XY Side +/-6.5 mm 3 micron 1 0.2 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MYW40-AS Super Thin Crossed Roller Stage XY-Axis 40 x 40 mm Size 13mm Travel 0.01 mm Precision Click to Get a Quote
