Manual Dual-axis Super Thin Linear Positioning Stage
MYW100-AS

Home > Manual Stages > Crossed Roller Stages > Super Thin Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual dual-axis super thin linear is made of aluminum alloy with an elegant black anodized coating..

The bench size is 100 X 100 mm has a body weight of 1.1 kg.

It provides side type of feed position.

The maximum load of this super thin table is 4 kg.

The stroke is +/- 12.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MYW100-AS
100 mm by 100 mm XY Side +/-12.5 mm 3 micron 4 1.1 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

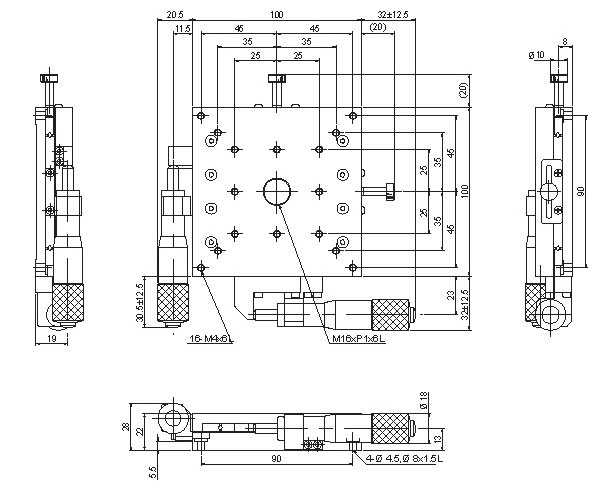

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MYW100-AS	Super Thin Crossed Roller Stage XY-Axis 100 x 100 mm Size 25 mm Travel 0.01 mm Precision	Click to Get a Quote

Manual Dual-axis Super Thin Linear Positioning Stage MYW100-AS

Manual Dual-axis Super Thin Linear Positioning Stage
MYW100-AS
