Manual Linear XY-axis Positioning Stage

Home > Manual Stages > Crossed Roller Stages > XY-axis Stages

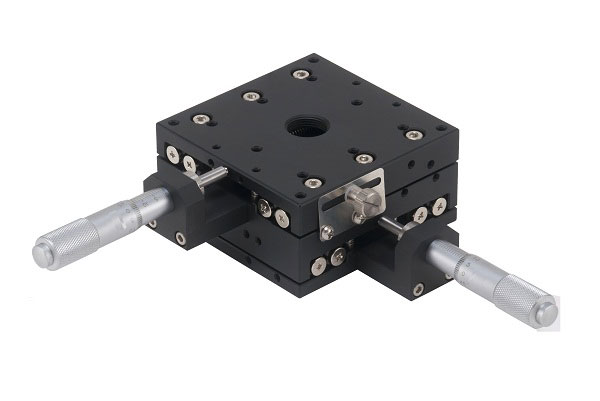

Manual Linear XY-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 80 X 80 mm has a body weight of 1 kg.

It provides central type of feed position.

The maximum load of this super thin table is 9.5 kg.

The stroke is +/- 12.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

  Unit: mm
Part No.. Table
Axis Feed
Travel Distance Micrometer
minimum reading
Movement accuracy
Load Capacity
Material Surface


80 by 80 XY axis Center +/-12.5 10 micron 3 micron 9.5 1 Aluminum Alloy Black anodized

Mechanical Drawing

Manual Linear XY-axis Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MY80-AC Crossed Roller Stage Center Drive XY-Axis 80 x 80 mm Size 25 mm Travel 0.01 mm Precision Click to Get a Quote
