Manual Single-axis Linear Positioning Stage
MX70-AC

Home >  Manual Stages > Crossed Roller Stages > X-axis Stages

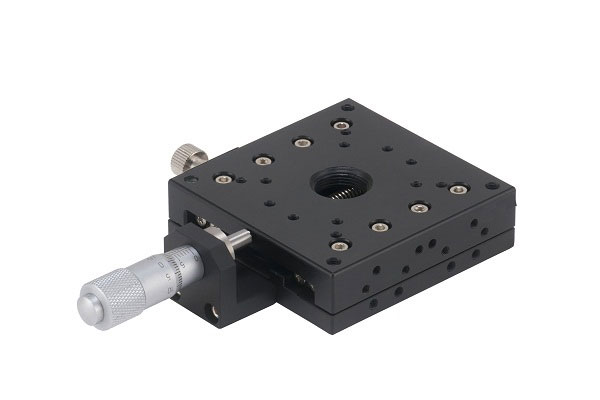

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 70 x 70 mm has a body weight of 0.44 kg.

It provides center type of feed position.

The maximum load of this super thin table is 6 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MX70-AC

70 mm by 70 mm X axis Central +/-6.5 mm 3 micron 6 0.44 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

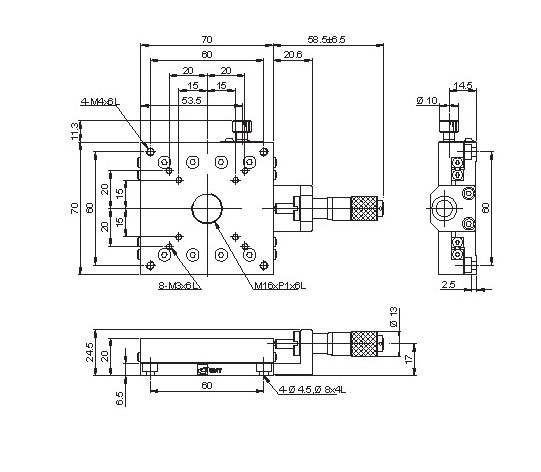

Manual Single-axis Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MX70-AC Crossed Roller Mini Aluminum Stage X Axis 70x70 mm Table with 13mm Travel Click to Get a Quote
