Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin X-axis

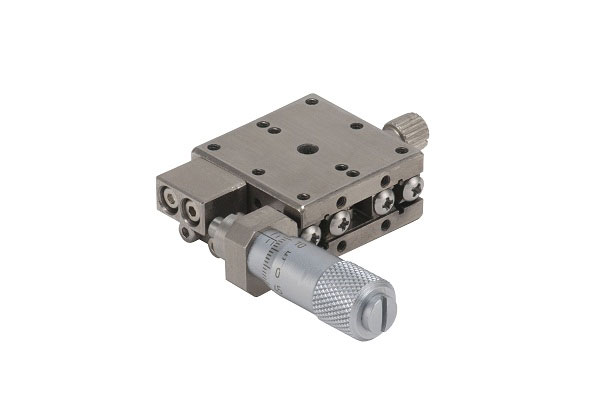

Manual Linear Positioning Stage Picture

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 25 X 25 mm has a body weight of 0.07 kg.

It provides side type of feed position.

The maximum load of this linear table is 4 kg.

The stroke is +/- 3.2 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MX25-SS
25 mm by 25 mm X Side +/-3.2 3 micron 4 0.07 stainless steel 440C Electroless nickel plating 10 micron

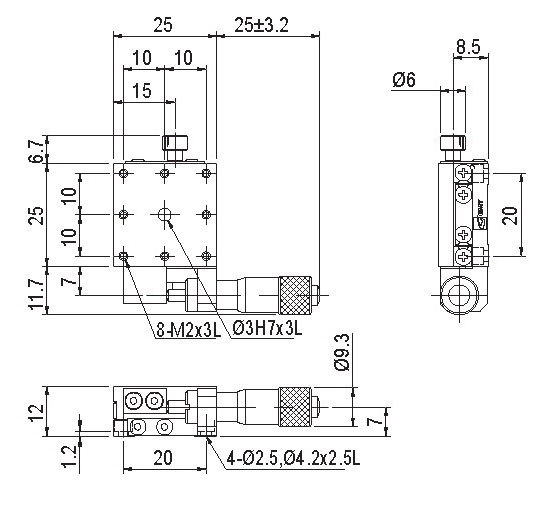

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MX25-SS

Ordering Information

Part No.	Description	Amount
MX25-SS	Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm	Click to Get a Quote
