Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

Manual Alpha-axis Goniometer Stage Picture

MXG3-44CE, single-axis manual goniometers are made of brass alloy with an elegant black fluororesin coating.

The bench size is 30 X 30 mm has a body weight of 0.1 kg.

The drive mechanism is worm and worm gear. The worm gear ratios is ≈33'23'' per revolution of knob.

It provides +/-8 degrees of rotation.

The maximum load of this goniometer table is 1.5 kg.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 30 mm.

Specifications

Unit: mm

Part No.. Table
Size Axis Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Travel Distance per
Rev. of Knob Minimum reading
indicator Height of
rotational center

MXG3-44CE
30 by 30 α 1.5 0.1 Brass Alloy Black Fluororesin +/- 8° ≈33'23'' 0.1° / indicator 30

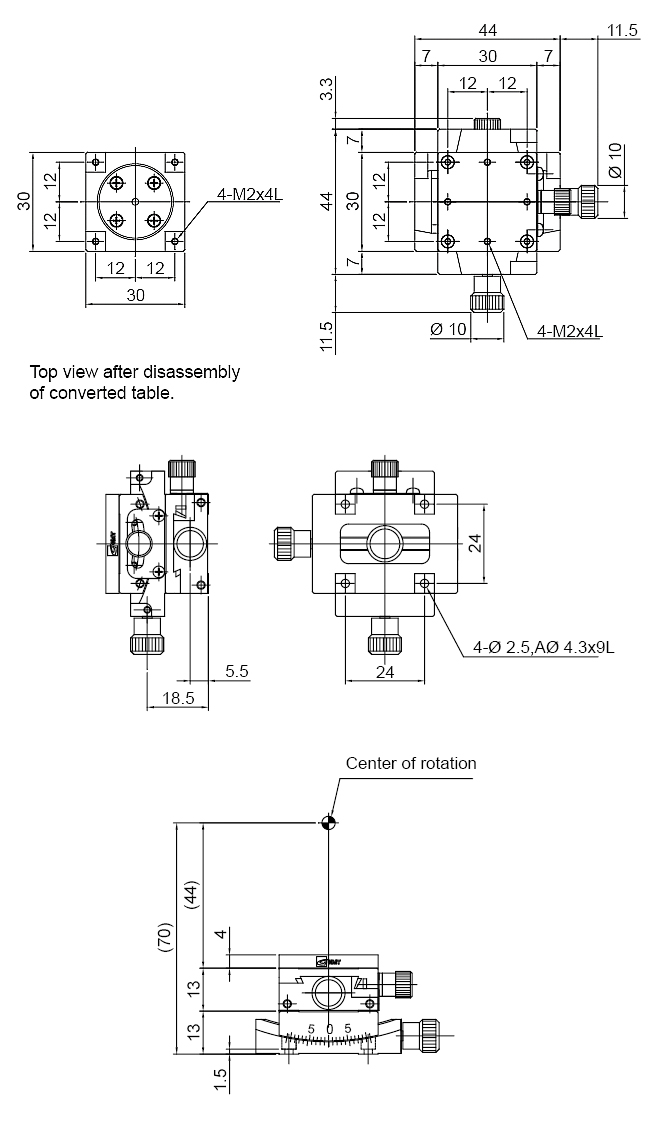

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG3-44CE

Ordering Information

Part No.	Description	Amount
MXG3-44CE	Manual Alpha-axis Goniometer Stage, Range of Travel +/- 8°	Click to Get a Quote
