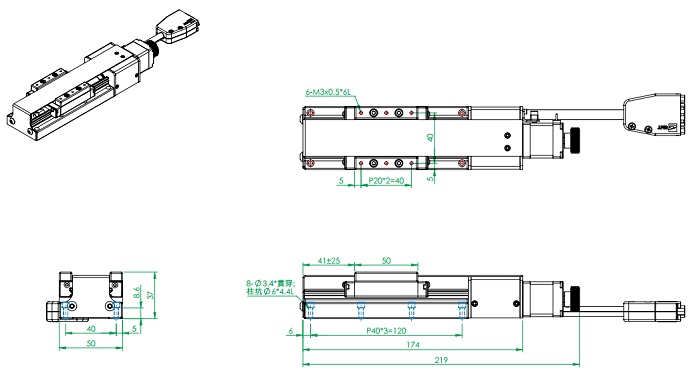

This motorized single-axis positioning is made of
Steel.
The stage size is 50x50 mm.
The travel stroke is 50 mm.
The Load Capacity is 10 kg.
The resolution is 5 microns / 2.5 microns .
The typical repeatability Accuracy is ± 2 microns.
The typical positioning accuracy is 25 microns.
The maximum speed is 10 mm / sec.
|
