Hollow Core Motorized Rotary Stage

Home   > Motorized Rotary Stages

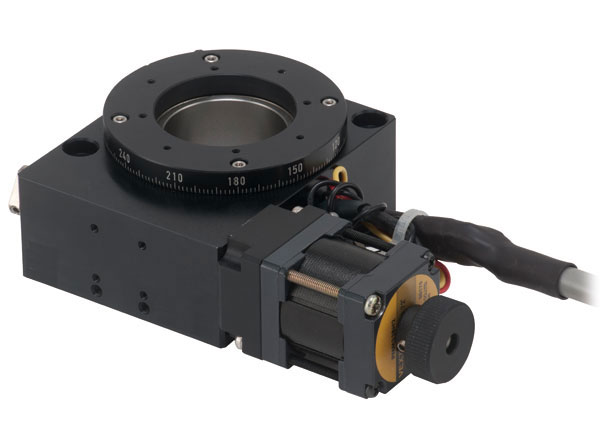

This hollow core motorized rotary stage is made of aluminum alloy with an elegant black anodized surface.

The top plate mounted indicator shows the angle of rotation.

This 59 mm diameter rotary actuator with a 30 diameter hollow core  has a body weight of 0.6 Kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 180:1.

It provides a maximum speed of 50 Degrees  per second at 360 Degrees  of rotation.

The maximum load of this rotary table is 3 Kg.

The resolution of 0.01 Degrees is achieved with a 10 micro-steps per step stepper motor driver. This rotation stage is also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

AR59-AH

M
e
c
h
n
i
c
a
l

s
p
e
c

Table Size

Φ 59 mm

Range of Travel 360 Degrees
Drive Mechanism Worm & Worm Gear
Lead Type

Deep - groove ball bearing

Moving direction (speed - reduction ratio) Worm Gear (Ratio 1/ 180)
Load 3 Kg
Body Weight 0.6 Kg
Material Aluminum Alloy
Surface treatment Black Anodized


T
y
p
i
c
a
l

A
c
c
u
r
a
c
y



2-phase
resolution
(pulse)
Resolution   +/-0.01 Degrees  / 0.05 degrees
Micro Stepping(1/10 step) +/- 0.001
Moment Stiffness 0.84  Degrees /Ncm
Parallelism 50 micron
Maximum Speed 50  Degrees /sec
Single-direction Positioning Precision 0.05 Degrees
Re ciprocating Position Precision +/-0.01 Degrees
Backlash 0.05 Degrees
Ideal run 0.05 Degrees

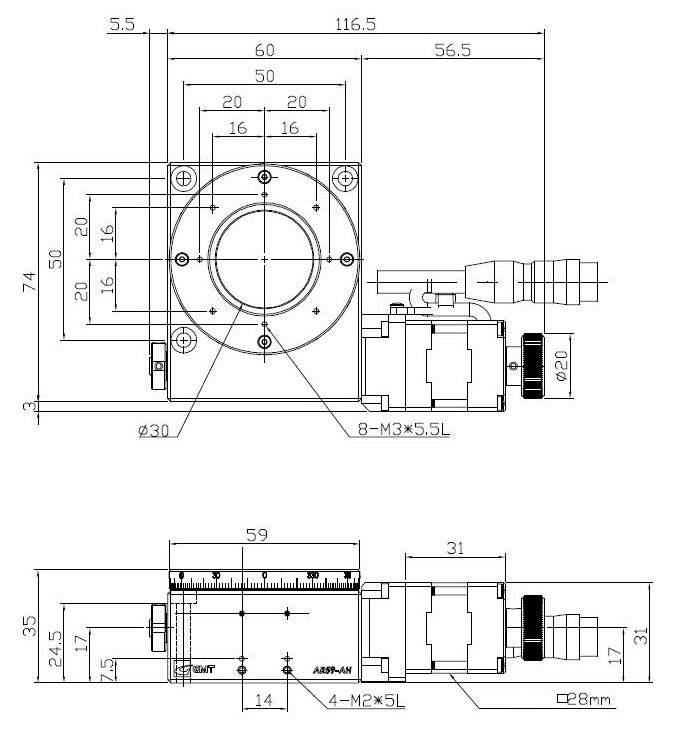

Stepper Motor Driven Mechanical Drawing


  Ordering Information

Part No. Description Amount
AR59-AH-01 Stepper Motor Driven Rotary Stage, Diameter: 59 mm Click to Get a Quote
AR59-AH-04 Stepper Motor Driven Hollow Core Rotary Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Stage Diameter:59 mm, Aperture Diameter: 30 mm Click to Get a Quote
