Motorized Two-axis Pan-Tilt Stage, 60 mm Diameter


Home > Assorted Motorized Pan-Tilt Actuators

Motorized Two-axis Pan-Tilt Stage, 60 mm Diameter

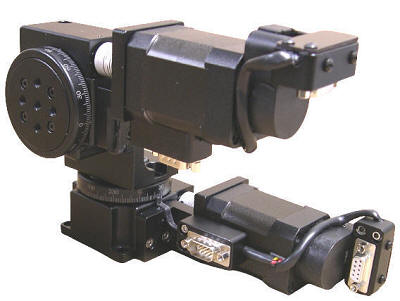

Servo Motorized Two-axis Pan-Tilt Stage, 60 mm Diameter

Stepper Motor Driven Two-axis Pan-Tilt Stage

DC Motor Driven Two-axis Pan-Tilt Stage



The PT60 Pan-Tilt Stage is a combination of two 60 mm (2.362 in.) rotary stages set at a 90 Degrees  angle to each other. The rotary stages of each Pan-Tilt stage features a high repeatability of 0.005 Degrees (18 arcsec), a positional accuracy of 0.005 Degrees (18 arcsec), and a resolution of 0.001 Degrees (3.6 arcsec) when 10 Micro-steps per Step Motor Driver is in use. These Pan (horizontal table)-Tilt (vertical table) stages are deal for: Scanning, testing, inspection, assembly, positioning, laser and micro machining, pointing optics and cameras, and other applications.

The pan and tilt axes on both stages have precision V-grove and crossed roller travel guides and are driven by a worm gear with just of 0.005 Degrees (18 arcsec) of backlash.

Each axis is driven by a standard bi-directional stepper motor with a knob for manual adjustments and each rotary axis has a vernier scale for setup. The knob on each motor can be replaced with an optical encoder for position verification. Travel speed of each axis is 12 Degrees per second with the stepper motors For higher speeds and closed loop operation, servo motors are also available.

The PT60 Pan-Tilt Stage can be ordered as complete plug-and-play systems with a Motion Controllers , joystick, trackball or keypad.


Video Demonstration

Specifications

Type

PT60

Structure Description

Base Material

Aluminum Alloy

Range of Travel 360 Deg Continuous on Tilt Axis
Table Size Diameter: 2.362 in (60 mm)
Gear Ratio 90:1
Actuator Type Worm and Worm Gear
Travel Guide

Precision V-groove & Crossed Roller

Stepper Motor Version
Pan and Tilt Motors

DB9 Male pinout

Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the HOME Sensor
2

Not Connected

3

Not Connected

4 Return for+5 VDC
5 Home Switch
Open Collector
Normally Open
Needs Pull up Resistor (typically 1000 Ohms)
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-

Surface Treatment Black Anodized
Load Capacity 10 .0 kg
Weight 2.05 kg (4.5 lb)
Resolution 0.001 Deg = 3.6 arcsec (10 Micro-steps per Step Motor Driver in use)
Maximum Speed of the Pan axis with Stepper Motor 12 Deg/sec
Maximum Speed of the Tilt Axis with Stepper Motor 12 Deg/sec
Maximum Speed of the Pan Axis with Servo Motor 90 Degrees per second
Maximum Speed of the Tilt Axis with Servo Motor 90 Degrees per second

Repeatability

Typical Accuracy +/- 0.05 Deg = +/- 180 arcsec
Positional Accuracy +/- 0.01 Deg = +/- 36 arcsec


Tilt-axis Stepper Motor Driven Mechanical Drawing

Drawing of Dual-axis Stepper Motor Driven Pitch and Yaw Stage, Table Diameter: 60 mm

Ordering Information

Part No. Description Amount
PT60-01 Stepper Motor Driven Two-axis Pan-Tilt Stage, 60 mm Diameter Click to Get a Quote
PT60-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Two-axis Pan-Tilt Stage, 60 mm Diameter Click to Get a Quote
PT60-03 DC Brush Servo Motor with Quadrature Incremental Optical Encoder Driven Two-axis Pan-Tilt Stage, 60 mm Diameter Click to Get a Quote
PT60-04 Stepper Motor Driven Two-axis Pan-Tilt Stage with 500 Cycle per Revolution Quadrature Optical Encoder Mounted on the Back of the Stepper Motors , 60 mm Diameter Click to Get a Quote
