Three-axis Yaw, Pitch and Roll Stage

Home > Motorized Yaw, Pitch and Roll Stages


The PYR-10-15-60 Series of Three-axis Pitch, Yaw, and Roll Stages from OES (Optimal Engineering Systems, Inc.) are the integration of a 60 mm diameter rotary stage (upper axis) capable of 360 degrees of continuous operation mounted with the table perpendicular to the table of the Yaw stage (middle axis) goniometer. The middle goniometer stage has a range of +/- 15 degrees and the lower goniometer stage has a +/- 10 degrees range.  These compact three-axis Pitch, Yaw, and Roll stages feature four motor options to meet the precision and speed of travel requirements of an application.

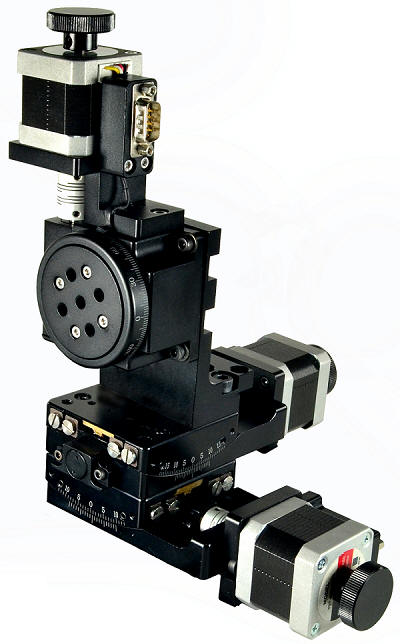

Depending on the levels of precision and speed of travel requirements, four motor options are available.  The Stepper Motor Driven Stage (-01 option pictured) has knobs at the back of the stepper motors for manual adjustments. With a 10 microsteps-per-step motor driver the repeatability of the stages is +/- 0.01 degrees and travel speeds of 30 degrees-per-second (roll stage) and 14 degrees-per-second (yaw and pitch stages) can be achieved.  Option -02 is driven by Three Phase-Servo Motors with Quadrature Optical Encoders, and option -03 is Brushed DC Servo Motor Driven with Quadrature Optical Encoders. The servo driven stages in a closed loop offer the highest precision and travel speeds.  The -04 option is Stepper Motor Driven with Quadrature Optical Encoders for position verification.

These three axis stages are the ideal choices for: Optics, laser scanning, drilling, and machining, reverse engineering, inspection, assembly, measurements, tracking, and positioning.

The rotary axis has a precision pattern of threaded holes for mounting tooling or fixtures and is equipped with a HOME switch to signal the motion controller for initial HOME positioning.  The goniometer (pitch and yaw) axes are equipped with positive and negative limit switches to signal the motion controller that end of travel is reached.  All axes have calibrated scales for visual inspection.

Each of these stages can be ordered with a fully plug-and-play compatible multi-axis Motion Controller, joystick or trackball and keypad for any motor combination from OES.

Video Example

Specifications



PYR-10-15-60

Total Weight

5 kg (11 lb)

Load Capacity

4.0 kg (8.8 lb)

Base Material

Aluminum Alloy

Surface Treatment

Black Anodized





Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Stepper Motor
Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (Pitch and Roll Axes)

3

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (Pitch and Roll Axes)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor (Roll Axis)

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-


Yaw (Upper) Axis

Structure Description

Range of Travel 360 Degrees Continuous
Gear Ratio 90:1
Drive Mechanism

Worm Gear

Travel Guide Bearing

Typical Accuracy

Resolution 0.002 degrees  (10 micro-steps per step stepper motor driver in use)
Repeatability +/-0.01 degrees
Positional Accuracy 0.05 degrees
Maximum Speed with Stepper Motor 30 degrees per second
Maximum Speed with Servo Motor 90 degrees per second


Roll (Middle) Axis

Structure Description Range of Travel

+/-10 degrees

Gear Ratio 1° (stage) : 252° (motor)
Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide

Typical Accuracy

Resolution Stepper Motor Driver or Servo Motor Optical Encoder Dependent
Repeatability +/-0.01 degrees
Positional Accuracy 0.05 degrees
Maximum Speed with Stepper Motor 14 degrees per second
Maximum Speed with Servo Motor 45 degrees per second


Pitch (Lower) Axis

Structure Description Range of Travel

+/-45 degrees

Gear Ratio 1° (stage) : 352° (motor)
Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide

Typical Accuracy

Resolution Stepper Motor Driver or Servo Motor Optical Encoder Dependent
Repeatability +/-0.01 degrees
Positional Accuracy 0.05 degrees
Maximum Speed with Stepper Motor 14 degrees per second
Maximum Speed with Servo Motor 45 degrees per second

Stepper Motor Driven Mechanical Drawing (Roll Table)

Three-axis Stepper Motor Driven Yaw, Pitch and Roll Stage, Diameter 60 mm

Ordering Information

Part No. Description Amount
PYR-10-15-60-01 Three-axis Stepper Motor Driven Yaw, Pitch and Roll Stage, Table Diameter 60 mm Click to Get a Quote
PYR-10-15-60-02 Three-axis Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Yaw, Pitch and Roll Stage, Table Diameter 60 mm Click to Get a Quote
PYR-10-15-60-03 Three-axis DC Servo Motor with Quadrature Incremental Optical Encoder Driven Yaw, Pitch and Roll Stage, Table Diameter 60 mm Click to Get a Quote
PYR-10-15-60-04 Three-axis Stepper Motor Driven Yaw, Pitch and Roll Stage with 500 Cycles per Revolution Quadrature Optical Encoders Mounted at the back of the Stepper Motors, Table Diameter 60 mm Click to Get a Quote
