Motorized Two-axis Gimbal Mount, Azimuth and Elevation  Axes
(Yaw and Pitch Axes)

Home   > Assorted Motorized Gimbal Mounts


These Azimuth and Elevation Gimbal Mounts are ideal for mounting: Cameras, antennas, projectors, lasers and instrumentation for scanning, tracking, positioning optics, and other applications.

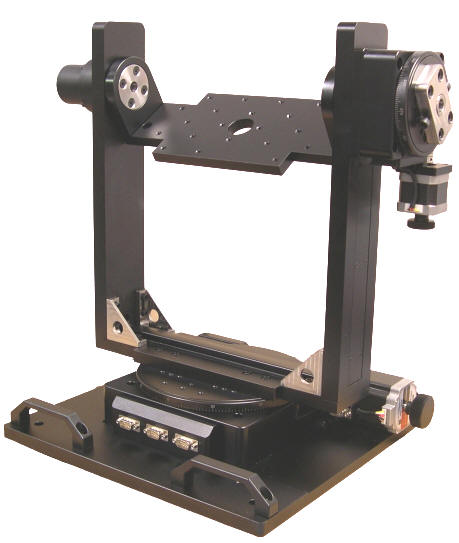

Each axis of the gimbal mount features: Low backlash worm gear drives and precision "V" groove and cross roller bearings for very high repeatability and positional accuracy.  Available with either stepper motors (AU300-AE-01 pictured) or with three-phase brushless servo motors with Quadrature Optical Encoders (AU300-AE-02) for greater resolution, accuracy, and repeatability as well as higher travel speeds.

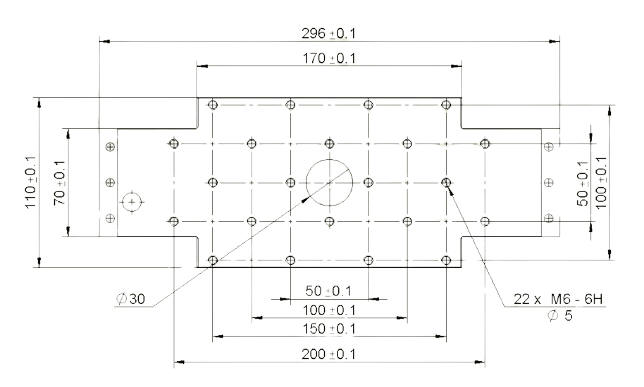

The azimuth (yaw) axis is mounted on a large 360 mm (14.173 in.) x 360 mm (14.173 in.) x 13 mm (0.512 in.) plate for increased stability and the elevation (pitch) axis has a clearance of 300 mm x 300 mm, (11.8 in. x 11.8 in.)  around the roll axis stage. The elevation table has a precise pattern of threaded mounting holes for fixtures, tooling. through hole.

Each AU300-AE Series Azimuth and Elevation Two-axis Gimbal Mount handles loads to 10 kg (22 lbs), and the base plate has four handles and accessible predrilled mounting holes for easy integration into new or existing applications. The travel speeds of each axis are 12 Degrees per second with stepper motors and 45 Degrees per second with servo motors. Electrical wiring is enclosed for protection and connections are made using 9 pin DB-9 connectors.

The knobs of the stepper motors may be replaced with optical encoders for position verification.

A Three-axis version is also available.
The AU300-AE Motorized Two-axis Gimbal Mounts require a
Motion Controller that can be ordered as a complete plug-and-play system with  joystick, trackball, and keypad.


Video Demonstration

Specifications

Type

AU300-AE

Structure Description

Range of Travel

360 Deg Continuous on Azimuth and Elevation Axes

Table Size Diameter: 100 mm (3.937 in)
Gear Ratio 180:1
Actuator Type Worm and Worm Gear
Travel Guide

Precision V-groove & Crossed Roller

Azimuth Motor

DB9 Male pinout

Typical Phase Resistance 2.5 Ohms, Bi-directional
Typical Phase Current 2 Amps
DB-9 Male Connector

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Elevation Motor

DB9 Male pinout

Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Maximum Load Capacity 10 kg (22 lb)
Weight with the Optional Bottom Plate 22.3 kg (49 lb)
Weight of the Bottom Plate 2.9 kg (6.3 lb)
Resolution 0.001 Deg = 3.6 arcsec (10 Micro-steps per Step Motor Driver in use)
Maximum Speed of the Azimuth axis with Stepper Motor 8 Deg/sec
Maximum Speed of the Elevation Axis with Stepper Motor 12 Deg/sec
Maximum Speed of the Azimuth axis with Servo Motor 45 Deg/sec
Maximum Speed of the Elevation Axis with Servo Motor 45 Deg/sec

Typical Accuracy

Accuracy 0.05 Deg = 180 arcsec
Repeatability +/- 0.01 Deg = +/- 36 arcsec

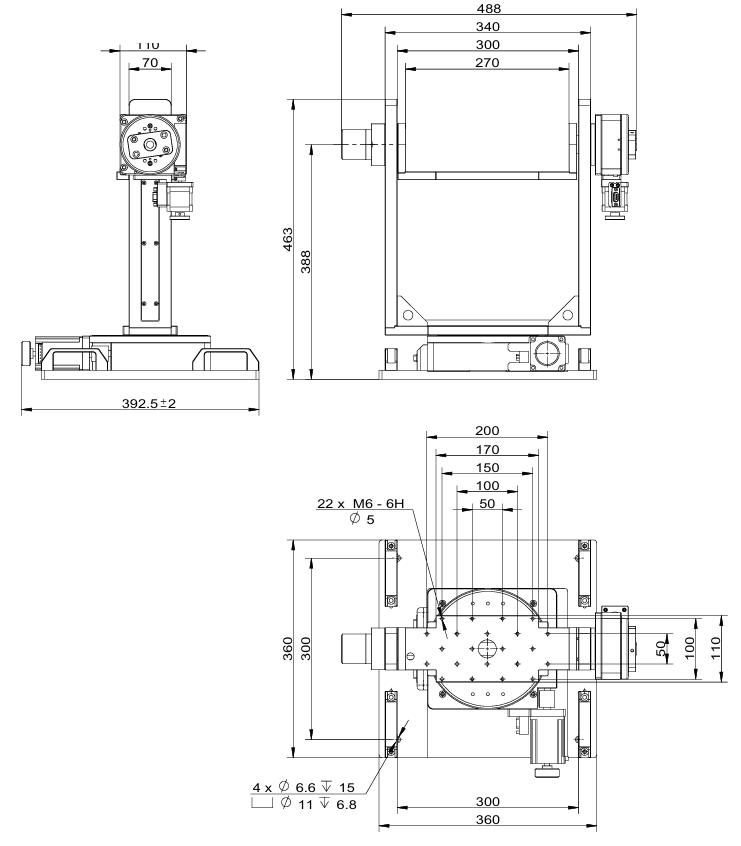

Stepper Motor Driven Mechanical Drawing







Click to get the STEP file

  Ordering Information

Part No. Description Amount
AU300-AE-01 Stepper Motor Driven Two-axis Gimbal Mount, Azimuth and Elevation (Yaw and Pitch Axes) Click to Get a Quote
AU300-AE-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Two-axis Gimbal Mount, Azimuth and Elevation (Yaw and Pitch Axes) Click to Get a Quote
AU300-AE-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Two-axis Gimbal Mount, Azimuth and Elevation (Yaw and Pitch Axes) Click to Get a Quote
AU300-AE-04 Stepper Motor Driven Two-axis Gimbal Mount, Azimuth and Elevation (Yaw and Pitch Axes)  with 500 Cycles per Revolution Quadrature Optical Encoders Mounted at the back of the Stepper Motors Click to Get a Quote

Photo Motion Controllers
