Motorized Two-axis Gimbal Mount, Pitch and Roll Axes
(Elevation and Roll Axes)

Home   > Assorted Motorized Gimbal Mounts

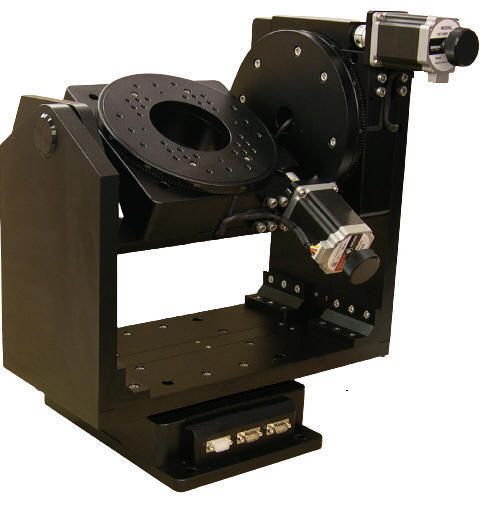

Stepper Motor Driven Two-axis Gimbal Mount, Pitch and Roll Axes (Pitch and Roll Axes)


The AU270-ER Motorized Three-axis Gimbal Mounts require a Motion Controller that can be ordered as a complete plug-and-play system with  joystick, trackball, and keypad.

Video Demonstration

Video Demonstration

Specifications

Type

AU270-ER

Structure Description

Range of Travel

360 Deg Continuous on All Axes

Table Size Diameter: 7.874 in (200 mm)
Gear Ratio 180:1
Actuator Type Worm and Worm Gear
Travel Guide

Precision V-groove & Crossed Roller

Aperture Diameter

90 mm
Elevation Motor

DB9 Male pinout

Typical Phase Current 2 Amp
DB-9 Male Connector

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Roll Motor

DB9 Male pinout

Typical Phase Current 2 Amp
DB-9 Male Connector

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 10 kg (22 lb)
Weight 35 kg (77 lb)
Resolution 0.001 Deg = 3.6 arcsec (10 Micro-steps per Step Motor Driver in use)
Maximum Speeds of the Elevation and Roll Axes with Stepper Motors 8 Deg/sec
Maximum Speed of the Azimuth axis with Servo Motor 45 Deg/sec
Maximum Speed of the Elevation and Roll Axes with Servo Motors 45 Deg/sec

Typical Accuracy

Accuracy 0.05 Deg = 180 arcsec
Repeatability +/- 0.01 Deg = +/- 36 arcsec

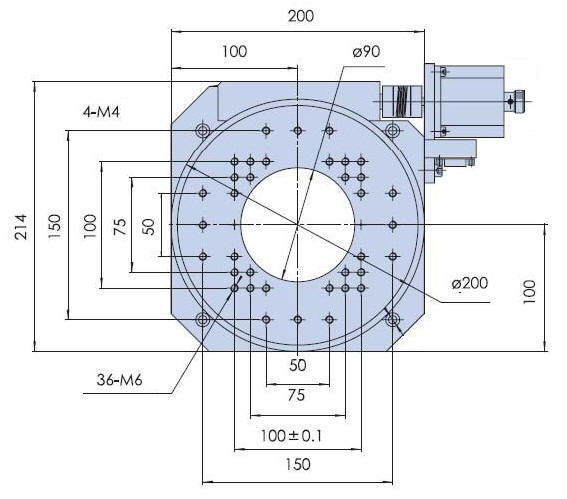

Top Plate Mechanical Drawing




Click to get the STEP file of the stage

  Ordering Information

Part No. Description Amount
AU270-ER-01 Stepper Motor Driven Two-axis Gimbal Mount, Pitch and Roll Axes (Pitch and Roll Axes) Click to Get a Quote
AU270-ER-02 Two-axis Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Two-axis Gimbal Mount, Roll Axes (Yaw, Pitch and Roll Axes) Click to Get a Quote
AU270-ER-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Two-axis Gimbal Mount, Roll Axes (Yaw, Pitch and Roll Axes) Click to Get a Quote
AU270-ER-04 Stepper Motor Driven Two-axis Gimbal Mount, Roll Axes (Yaw, Pitch and Roll Axes) with 500 Cycles per Revolution Quadrature Optical Encoders Mounted at the back of the  Stepper Motors Click to Get a Quote
