Motorized Linear Vertical Stage

Home   > Motorized Vertical Single-axis Stages

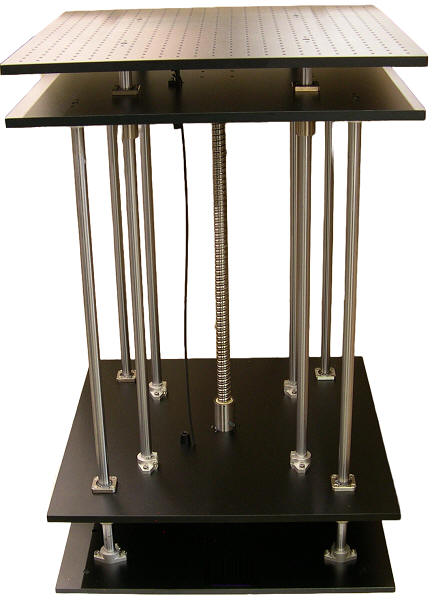

Motorized Linear Vertical Stage, Range of Travel 600 mm

    The new AT20-600 series of Motorized Vertical Lift Stages features a vertical lift of 600 mm.
    The AT20-600-01 is driven by a Two-Phase Stepper Motor features a repeatability of 5 microns, positional accuracy of 20 microns and has a knob on the motor for manual adjustment.

    The AT20-600-02 is driven by a Brushless DC Servo Motor with a Quadrature Incremental Encoder and the AT20-600-03 is driven by a DC Servo Motor with a Quadrature Incremental Encoder.  Each of the Servo Motor options, the -02 and -03 versions, offer higher travel speeds, increased positional accuracy, and repeatability.

    The AT20-600-04 is driven by a Two-Phase Stepper Motor with a Quadrature Incremental Encoder mounted on the motor for position verification.



    The large 600 mm by 600 mm stage table has a pattern of threaded mounting holes, and the rigid box construction of the moving component of the elevator stage travels on six slide rails assuring smooth vertical travel and parallelism of the table and mounting surface at all times.

    The high 50 kg load capacity of the AT20-600 Series Stages allows for positioning of: Multi- Axis Stages, flasks, stirrers, hotplates, and other lab equipment, testing, inspection, assembly, sampling, laser drilling and machining, in a broad range of industrial, medical, semiconductor, and research applications.

    The AT20-600 Motorized Vertical Lift Stage at lowered position is 610 mm high, and weighs 45 kg.  Constructed of black-anodized aluminum alloy and steel shafting, it incorporates a center mounted, precision ground lead screw having a transmission ratio of 663 microns per motor revolution removing the concern for cantilevered effects or loss of parallelism.  Additionally, the stage has access from all four sides. Limit switches prevent over travel, and the large base plate has easy access to mounting holes.

    This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications
Type

AT20-600

Structure Description

Range of Travel

600 mm

Table Size

600 mm x 600 mm

Actuator Type Lead Screw
Travel Guide

Slide Rail

Two Phase Stepper Motor

DB9 Male pinout

Typical Phase Resistance 2.3 Ohms, Bi-directional
Typical Phase Current 2 Amp
DB-9 Male Connector
Pin Assignment and Description
1 Not Connected
2 Upper Limit Switch, Normally Open
3 Lower Limit Switch, Normally Open
4 Ground
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 50 kg
Weight 45 kg

Typical Accuracy Description

Transmission Ratio 663 microns per motor revolution
Repeatability 5 microns
Positional Accuracy 20 microns
Backlash 4 microns

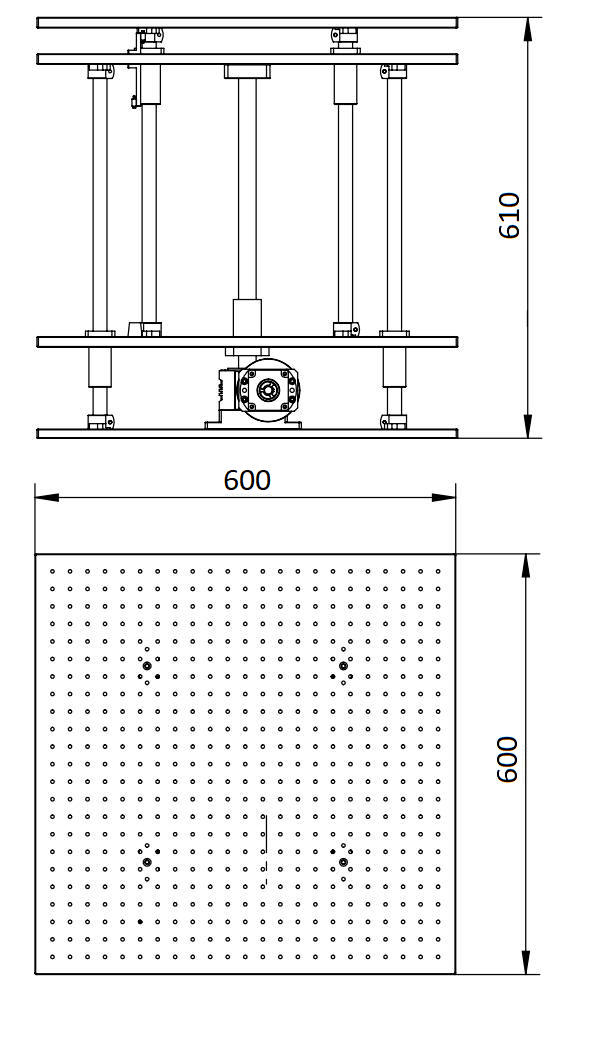

Stepper Motor Driven Mechanical Drawing

Click to get the STEP file

  Ordering Information

Part No. Description Amount
AT20-600-01 Stepper Motor Driven Linear Vertical Stage, Load Capacity: 50 kg, Range of Travel: 600 mm Click to Get a Quote
AT20-600-02 Brushless DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Vertical Stage, Load Capacity 50 kg, Range of Travel: 600 mm Click to Get a Quote
AT20-600-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Vertical Stage , Load Capacity 50 kg, Range of Travel: 600 mm Click to Get a Quote
AT20-600-04 Stepper Motor Driven Linear Vertical Stage with 500 Cycle per Revolution Quadrature Optical Encoder , Load Capacity: 50 kg, Range of Travel: 600 mm Click to Get a Quote
