Dovetail Rack and Pinion Stage Z-Axis Long Stroke

Home > Manual Stages > Dovetail Stage > Rack and Pinion Z-axis Long Stroke

Manual Linear Positioning Stage Picture

MC3C-100 manual, dovetail, rack and pinion, Z-axis long stroke stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion long stroke is made of aluminum alloy with an elegant black anodized coating.

The stage size is 100 mm and have a body weight of 0.16.

The Load Capacity is 1.5 kg.

The stroke is +/- 40 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

  Unit: mm
Part No.. Stage size Movement accuracy
Load Capacity
Material Surface
Travel Distance Minimum reading


100 30 micron 1.5 0.16 Aluminum Alloy Black anodized +/-40 0.1mm / indicator

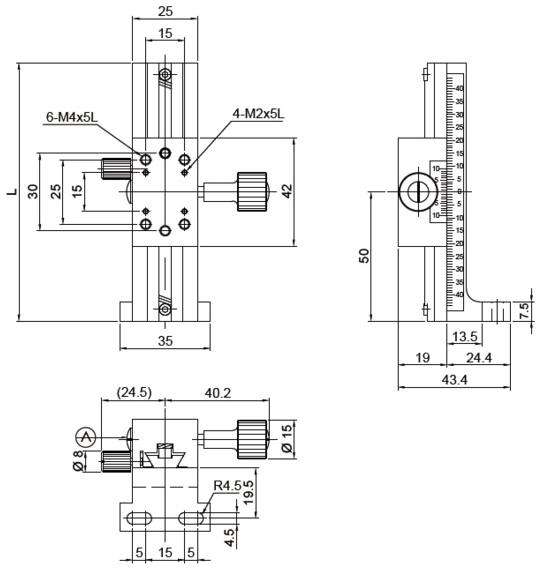

Mechanical Drawing

 Ordering Information

Part No. Description Amount
MC3C-100 Dovetail Rack and Pinion Stage Z-Axis Long Stroke 80 mm long with +/-40 mm Travel Click to Get a Quote
