Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XYZ-axis

Manual Linear Positioning Stage Picture

MCT-49L manual, dovetail, rack and pinion, XYZ-axis stages provide precise and accurate micrometer driven XYZ-axis adjustment of a top platform.

These manual XY+Z-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 1.17.

The maximum load of these feed screw tables is 2 kg.

The stroke is XY: +/-50 and Z: 50 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Knob No Minimum reading
indicator

MCT-49WL
40 by 90 XY+Z axis 30 micron 2 1.24 Aluminum Alloy Black anodized XY: +/-50, Z: 50 Dual 0.1mm/indicator

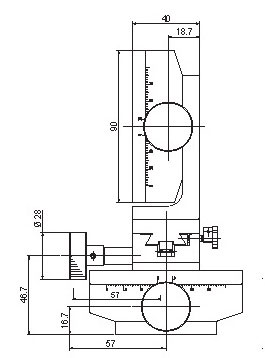

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MCT 49L

Ordering Information

Part No.	Description	Amount
MCT-49L	Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel XY: +/-30, Z: 30 mm	Click to Get a Quote
