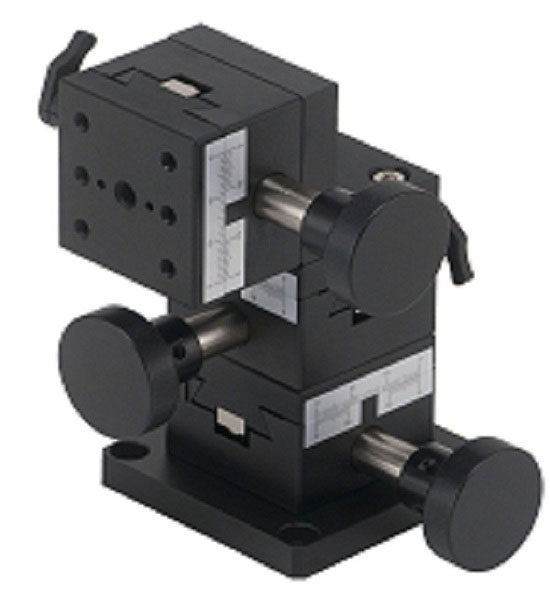

MCT-44L manual, dovetail, rack and pinion, XY+Z-axis stages provide precise and accurate micrometer driven XY+Z-axis adjustment of a top platform.

These manual XY+Z-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.64.

The maximum load of these feed screw tables is 2 kg.

The stroke is XY: +/- 10 and Z: 10 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.


Unit: mm
Part No.. Table
Axis Movement accuracy
Load Capacity
Material Surface
Travel Distance Knob No Minimum reading


40 by 40 XY+Z axis 30 micron 2 0.64 Aluminum Alloy Black anodized XY: +/- 10, Z: 10 Single 0.1mm/indicator

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MCT-44L Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel XY: +/- 10, Z: 10 mm Click to Get a Quote
