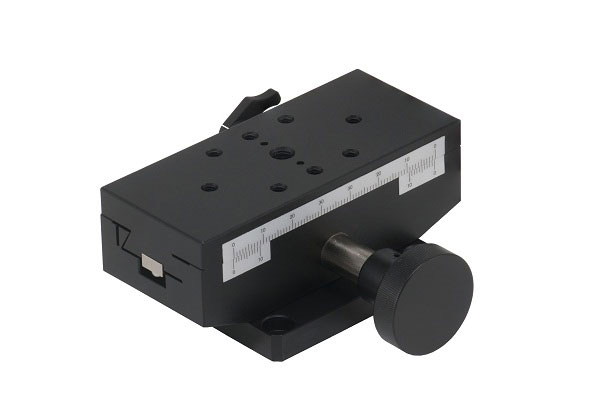

Manual Linear Positioning Stage Picture

MCS-49 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 0.42.

The maximum load of these feed screw tables is 4 kg.

The stroke of travel is +/- 30 mm.

The straightness accuracy is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

  Unit: mm
Part No.. Table
Axis Movement accuracy
Load Capacity
Material Surface
Travel Distance Knob No Minimum reading


40 mm by 90 mm

X axis

30 micron 4.0 0.4 Aluminum Alloy Black anodized +/- 30 Single 0.1mm/indicator

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MCS 49

 Ordering Information

Part No. Description Amount
MCS-49 Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-30 Click to Get a Quote
