Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

Manual Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 60 X 60 mm has a body weight of 0.45 kg.

It provides side type of feed position.

The maximum load of this super thin table is 2 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

  Unit: mm
Part No.. Table
minimum reading
Load Capacity
Material Surface
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing


60 by 60 10 micron 2.0 0.45 Aluminum Alloy Black anodized +/-6.5 3 micron 25 15

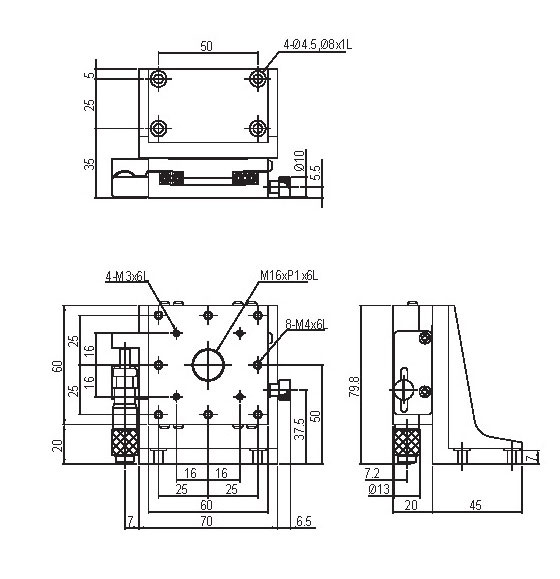

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MZL60-AS Crossed Roller Stage Z-Axis 60 x 60 mm Size 13mm Travel 0.01 mm Precision Click to Get a Quote
