Stepper Motor,
Size 34, 1320 oz-in, 200 Steps per Revolution
|
|
Model
|
Holding Torque
|
Current per Phase
|
Voltage
|
Resistance per Phase
|
Inductance per Phase
|
Rotor
Inertia
|
|
oz-in
N-m
|
Amp
|
Volts
|
Ohms
|
mH
|
o
z-in2
Kg-m2
|
|
STPM-34-200-1320-W
|
1320
9.3
|
|
5.6
|
2.60
|
0.49
|
4.20
|
22
4000 x 10
-7
|
|
|

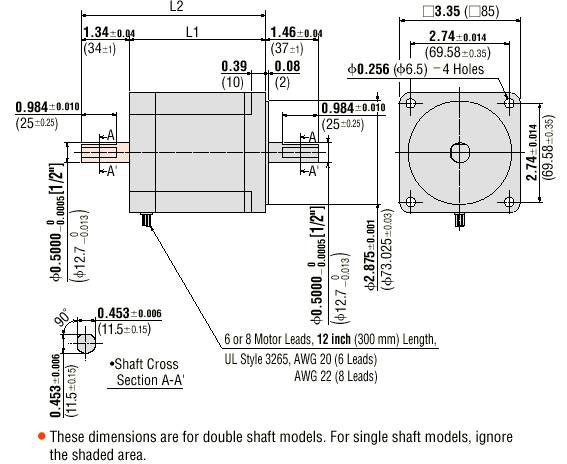

Dimensions
|
|
L1 = 4.96“ (126 mm)
L2 = 6.30” (160 mm)
Weight = 8.4 lb (3.8 Kg)
|
|

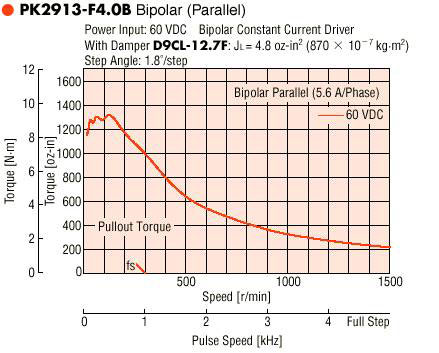

Speed Vs. Torque Characteristics
|
|
|
|
|
