Stepper Motor,
Size 23, 166 oz-in, 400 Steps per Revolution
|
|
Model
|
Holding Torque
|
Current per Phase
|
Voltage
|
Resistance per Phase
|
Inductance per Phase
|
Rotor
Inertia
|
|
oz-in
N-m
|
Amp
|
Volts
|
Ohms
|
mH
|
o
z-in2
Kg-m2
|
|
STPM-23-400-166-W
|
166
1.17
|
|
2.80
|
2.52
|
0.90
|
3.20
|
1.64
300 x 10
-7
|
|

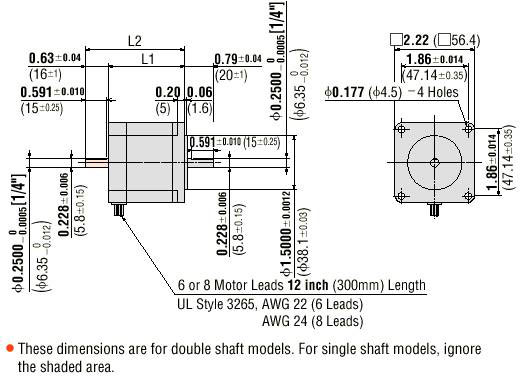

Dimensions
|
|
L1 = 2.13 “ (39 mm)
L2 = 2.76” (70 mm)
Weight = 1.50 lb (0.70 Kg)
|

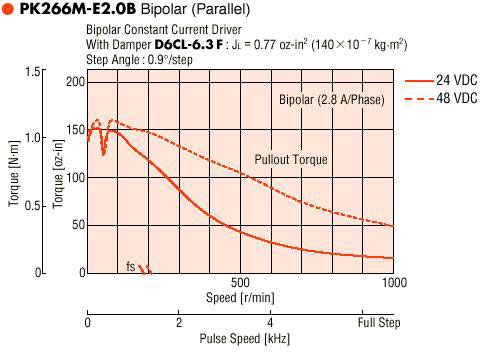

Speed Vs. Torque Characteristics
|
|
|
|
|
