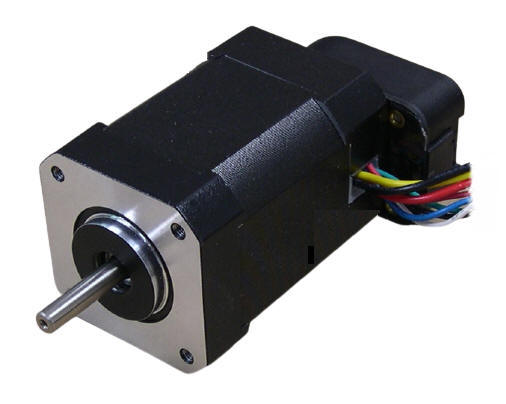

Three Phase Brushless Motor, Size 17
 Rated Speed
4000 (rpm)

Torque 17.7  (oz-in)

NEMA 17 Three Phase Brushless Motor, Size 17

Item Rated
Voltage
(V)
Rated
Power
(Watts)
Rated
Torque
(oz-in)
Rated
Speed
(rpm)
Torque
Constant
(oz-in/A)
Back EMF
Voltage
(V/kRPM)
Line-to-Line
Resistance
(Ohms)
Line-to-Line
Inductance
(mH)
Rotor
Inertia
(oz-in-sec2)
"L"
Length
(in)
CMZ172D-24V-4000 24 53 17.7 4000 5.03 4.14 0.80 1.20 0.000680 2.37
Incremental Quadrature Optical Encoder

5-pin Male Polarized Latching Connector





1 CABLE BROWN or GREEN CHANNEL-B, TTL Output
2 CABLE RED +5 VDC Input
3 CABLE WHITE CHANNEL-A, TTL Output
4   Not Connected
5 CABLE BLACK COMMON, (+5 VDC RETURN, GROUND)
