Stepper Motor Driver
|
|
 |
|
Related Products
|
Features
- 0.5
to 2.5 Amps Phase Current
- +12 VDC to +24 VDC Power Supply
- 1, 2, 4 and 8 Micro-steps per Step
- Size 8 to 23 Motors
- Auto Current Reduction
- 500 KHz Max Step Rate
- 0 șC To 70 șC Operating Temperature
- LED Power Indicator
- Small Size: 3.1" (78.8 mm) X 2.26" (57.4 mm) X
0.92 (23.4 mm)
- Anodized Aluminum Package
- Modular, Removable Main Connectors
|
|

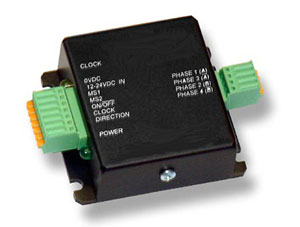

The STPMDRV-243 is a high performance, cost effective stepper motor driver to
implement intelligent stepper motor control . The driver incorporates an advanced
architecture and surface mount technology to achieve an exceptional power
density.
|
| ELECTRICAL
SPECIFICATIONS |
|
Supply Voltage
|
+12 to +24 VDC
|
|
Phase Current
|
0.5 to
2.5 Amps
|
|
Auto Current Reduction
|
33% of Set Current, 1 Second
After Last Step Pulse
|
| MECHANICAL
SPECIFICATIONS |
| Weight |
3.6 oz. (100 gm) |
| Dimensions |

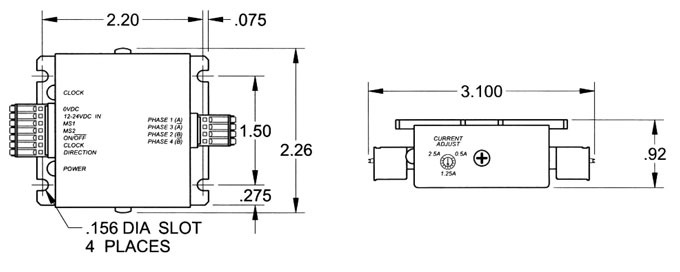

3.1" (78.8 mm) X 2.26" (57.4 mm) X 0.92 (23.4 mm) |
| Mounting Pattern |
Four 6-32 Screws, 0.15" Diameter |
|
ENVIRONMENT
|
|
Heat Sink Temperature |
0 oC to 70 oC |
|
Ambient Temperature
|
0 oC to 50 oC
|
Ordering Information
| Part No. |
Description |
Amount |
| STPMDRV-243
Wiring Diagram
 |
Stepper Motor Driver |
Inquire |
