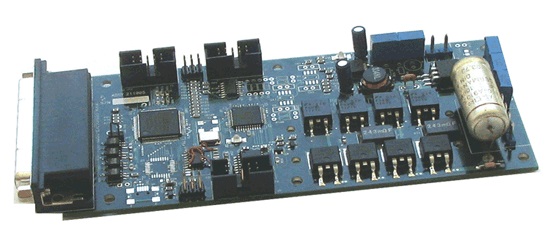

Servo
Motor Controller and Driver
MCAD Series
|
 |
|
|
These series of servo motor controller and driver is designed to drive
voice coil, brush-type and brushless DC motors.
The MCAD series is a high performance, cost effective Servo Motor Controller and Driver to
implement intelligent Motion Control. The driver incorporates an advanced
architecture and surface mount technology to achieve an exceptional power
density.
This module is an
easy-to-use, plug-and-play
and
cost effective
solution for single-axis
servo motor
control applications.
It may be used as a stand-alone unit or may be commanded by an external
device.
The powerful programming instructions motion control, system configuration,
data flow, program flow commands, 32-bit logical and mathematical
operations, and other miscellaneous instructions.
The module may be
controlled in different ways;
1)
Stand-alone
In this mode, the controller does not need an external
device such as a PC to operate. The controller is programmed in a simple programming language. The code is developed,
downloaded to the controller, run and saved in the
controller's non-volatile memory using the supplied
Integrated Development Environment (IDE) software.
2)
Externally Controlled
In this mode, the external host such as a PC,
micro-controller or PLC sends a series of commands to
the controller via the RS-232 serial port. The controller
processes and performs the incoming commands and responds
with proper messages.
3)
Control Panel
The supplied user friendly Control Panel software allows the
user to set-up the module quickly. The operator is able to
move the mechanism to different positions by pressing the
corresponding buttons of the Control Panel.
|
|
Features
- Runs DC and Brushless Servo
Motors
- Up to 20 Amp Motor Output
- +18 VDC to +250 VDC Power Supply
- Protected Against Over Current
- Protected Against Over Temperature
- PID Closed Loop Operation
- Quadrature Encoder Feedback
- Hall Effect Sensor Inputs
- +/- 2047 Count Servo Lock Range
- No Tachometer Feedback Needed
- Latched Fault Protection
- LED Fault Indicator
- Anodized Aluminum
Heatsink
- Modular 2-Piece Main Connector
DC and Three Phase Brushless
Motor Driver
- Up to 20 Amps Phase
Current
- +18 VDC to up to +250 VDC
Power Supply
- LED Fault Indicator
Mechanical Specifications
|
Software
ree Software Included
Dedicated Inputs
- Positive and Negative Limit Switches
- Home Switch
- Hall Effect Sensors
- Differential Quadrature Signals
- CONTINUE, END, RUN, STOP, and UPLOAD-and-RUN for Stand-alone
Mode Operation
General Purpose Digital Input / Output
- 3 Opto-isolated Inputs
- 2 TTL /
CMOS Inputs
- 2 TTL / CMOS Outputs
General Purpose Analog Input
- 2 Inputs
-
10 Bits of
Resolution
Communication Interface
|
Ordering Information
|
Part No. |
Description |
Price |
|
MCAD-LV-1 |
Single-axis,
Servo Motor Controller and Driver,
up to +50 VDC
Power Supply |
Call |
|
MCAD-HV-1 |
Single-axis,
Servo Motor Controller and Driver,
up to +250 VDC Power Supply |
Call |
|
