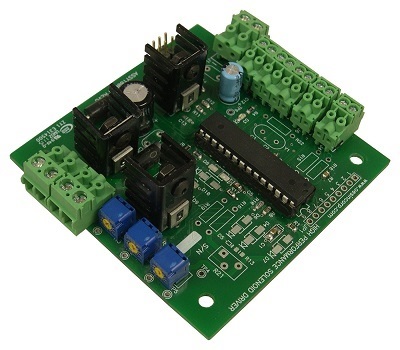

High Performance Proportional Solenoid Driver,  PWM Module


Wiring Diagram


Similar Solenoid Controller and Driver Products

Pick and Hold Module
Proportional (PWM) Module
Closed Loop Solenoid Position Control Module
Pick and Drop Module
Load On-Off Power Cycling Module
Dual Proportional Valve Controller
Serially Controlled Solenoid Driver
Solenoid Control System
Solenoid Controller Module
Related Products
Solenoid Commander Card
Power Supplies
Solenoids
Features
  • Low Cost

  • Small Size

  • Low Weight

  • High Efficiency

  • Microcomputer Based

  • Very High Reliability

  • Pulse Width Modulated (PWM)

  •  Adjustable Duty Cycle

  • Adjustable Maximum Pulse Width Using Onboard Trim Potentiometer

  • Single Supply, from +9 VDC to +50 VDC

  • High Supply Voltage, +50 VDC

  • High Output Current, 15 Amps Peak, 4 Amps RMS

  • Incorporates Flyback (Snubber, Freewheeling) Diode per Output Device

  • Available with High Side Driver

  • QUANTITIES AVAILABLE IN STOCK


Typical Applications
  • Solenoids

  • Valves

  • Relays

  • Actuators

  • Voice Coil Actuators

  • DC Motors

  • Hydraulics

  • Electromagnets

  • LEDs

  • Power Amplifier for Electro-Pneumatic Proportional Valve

General Specifications

  • Supply Voltage, +9 to +50 VDC

  • Peak Current, 15 Amp

  • Average Current, 4 Amp

  •  0-5 VDC Input Signal

  •  0-10 VDC Input Signal

  • 4-20 milliamps Input Signal

  • Step and Direction Input Signals

  • Quadrature Input Signals

  • External Potentiometer

  • Onboard Potentiometer

  • Serially Controlled

The PWM Module is designed to enable the user to vary the voltage across a solenoid or other devices. The PWM output voltage is proportional to the input control voltage. The maximum voltage applied to the device could be adjusted using an onboard  potentiometer.

The OES' Solenoid Controller Card with DAC option could be used to control up to four PWM Modules.

A DIN-rail mount bracket is available for this product.


Performance Specifications

Parameter

Min

Typical

Max

Units

Supply Voltage

9



50

VDC

Peak Current





15

A

Average Current





4

A

Input Control - Voltage Controlled

0



5

VDC

Input Control - Current Controlled

4



20

mA

Operating Temperature  0   50 Deg C

by     80 VDC version is also available.

Performance Table

Part No. Input Signal Hold Voltage Hold Time
PWM-xx Analog Voltage, 0-5 VDC



 or 4-20 milliamps
Proportional to Input Indefinite

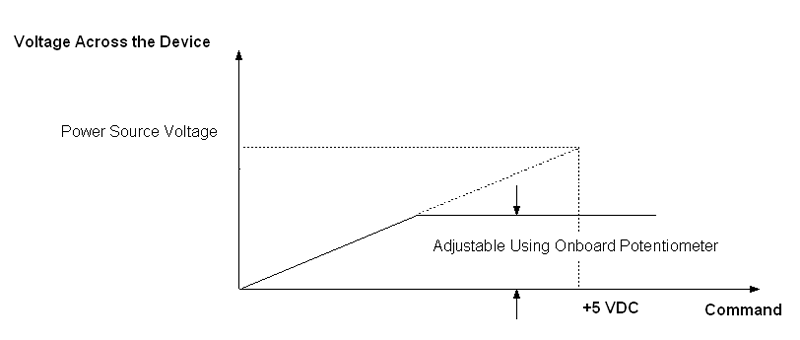

Input - Output Curve



Mechanical Specifications
Mounting Pattern Four 6-32 Screws, 0.15" Diameter (3.8 mm)
Dimensions 3.00” W, 3.00” D, 0.85” H (76.2 mm, 76.2 mm, 21.5 mm)

Ordering Information
Part No. Description Amount
PWM-01
Wiring Diagram
Single-device High Performance Proportional PWM Solenoid Driver Module, 0-5 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-02
Wiring Diagram
Two-device High Performance Proportional PWM Solenoid Driver Module, 0-5 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-03
Wiring Diagram
Single-device High Performance Proportional PWM Solenoid Driver Module, 4-20 milliamps Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-04
Wiring Diagram
Two-device High Performance Proportional PWM Solenoid Driver Module, 4-20 milliamps Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-08
Wiring Diagram

Single-device High Performance Proportional PWM Solenoid Driver Module, Step and Direction Input Signals, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-09
Two-device High Performance Proportional PWM Solenoid Driver Module, Step and Direction Input Signals, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-10
Single-device High Performance Proportional PWM Solenoid Driver Module, 4-bit Digital Inputs, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-11
Single-device High Performance Bidirectional PWM Solenoid Driver Module, 0-5 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-12
Wiring Diagram

Two-device High Performance Proportional PWM Solenoid Driver Module Controlled by Single Analog Input, 0-5 VDC Input Signal, Low Side Driver Click to Get a Quote
PWM-01-VF Single-device High Performance Proportional PWM Solenoid Driver Module,  Variable Frequency from 10 Hz to 250 Hz, 0-5 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-02-VF Two-device High Performance Proportional PWM Solenoid Driver Module,  Variable Frequency from 10 Hz to 250 Hz, 0-5 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-03-VF
Wiring Diagram
Single-device High Performance Proportional PWM Solenoid Driver Module, 4-20 milliamps Input Signal, Variable Frequency from 10 Hz to 250 Hz, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-04-VF
Wiring Diagram
Two-device High Performance Proportional PWM Solenoid Driver Module, 4-20 milliamps Input Signal, Variable Frequency from 10 Hz to 250 Hz, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-14 Single-device High Performance Proportional PWM Solenoid Driver Module, 0-10 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-15 Dual-device High Performance Proportional PWM Solenoid Driver Module, 0-10 VDC Input Signal, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-16 Single-device High Performance Proportional PWM Solenoid Driver Module, Joystick Input, Adjustable Input Signal Gain, +50 VDC Version, Low Side Driver Click to Get a Quote
PWM-17 Dual-device High Performance Proportional PWM Solenoid Driver Module, Joystick Input, Adjustable Input Signal Gain, +50 VDC Version, Low Side Driver Click to Get a Quote
SCSD-01 Single-device Serially Controlled Solenoid Driver Click to Get a Quote
SCSD-02 Dual-device Serially Controlled Solenoid Driver Click to Get a Quote
