Joystick and Trackball Controlled
Stepping Motor System
Presto Series
|
|
|
|
|
This
stepping motor systems is
capable of moving a group of motors via controlling the movement of a
joystick or trackball. The speed of the
motor is proportional to the tilt angle of the joystick or the rotational speed of the trackball.
These series are complete
multi-axis, multi-speed, stand-alone, easy-to-use, plug-and-play, and low
cost for manual stepping motor control
applications . They can
replace or upgrade manual systems, motorizing them with precision joystick
and/or trackball control.

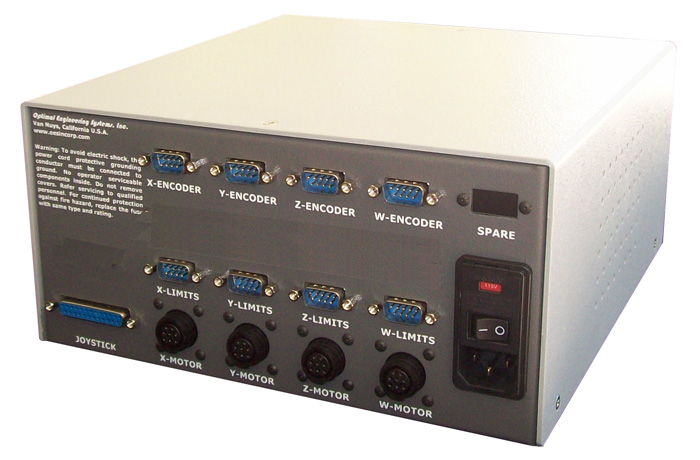

Each system includes
the
power supplies, controller,
the micro-stepper and/or servo motor drivers. and stepping motors.
Controlling devices include analog
joystick, trackball, two-phase quadrature signals, digital potentiometer, DC voltage, and external step and direction signals.
NO PROGRAMMING IS NECESSARY.
These series are also available
without the drivers. The outputs from the system would be power, enable,
step and direction signals. This configuration is suited to interface with
the "integrated motor and drivers".
|
|
Features
-
Compact
-
Multi-axis
-
Stand-alone
-
Plug-and-Play
-
Built-in Self Test
-
Three Speed Ranges, Fast, Medium, and Slow Mode
more
info...
-
Sixteen Sets of Selectable Speed Ranges more
info...
-
Selectable Micro-step Resolutions more
info...
-
Proportional Speed Control
- Positive and Negative Limit Switches per Axis
- Zero Adjustment of Joystick on Power-up
- Pre-wired Motors, Joystick, Trackball
- Quadrature Encoder Feedback
- Optional Trackball Interface
- Optional Step and Direction Inputs
- Available also to Drive Stepper, DC Servo, Brushless, and Voice Coil Motors
-
Totally Integrated Solution
|
|
Ordering Information
|
Part No. |
Description |
Price |
|
Presto-1 |
Single-axis, Joystick Interfaced
Motion
System
|
Call |
|
Presto-2 |
Two-axis, Joystick Interfaced Motion
System
|
Call |
|
Presto-3 |
Three-axis, Joystick Interfaced Motion
System
|
Call |
|
Presto-4 |
Four-axis, Joystick Interfaced
Motion
System
|
Call |
Joy-3
picture |
Three-axis, Pre-wired Joystick with 3 Speed Selection
Keys |
$325.00 |
Joy-2
picture |
Two-axis, Pre-wired Joystick with 3 Speed Selection Keys |
$225.00 |
TRKBL
picture |
Pre-wired Trackball |
Call |
Rotary Stepping Motors,
Economy Series |
|
|
Size 17 |
|
|
STPM-17-200-40-W
data sheet |
Pre-Wired Stepping Motor, Size 17, 200 Steps per
Revolution, 40 oz-in, 0.29 N-m, Cable Length 6 ft (1.8 m) |
$45.00 |
|
Size 23 |
|
|
STPM-23-200-140-W
data
sheet |
Pre-Wired Stepping Motor, Size 23, 200 Steps per
Revolution, 140 oz-in, 1.02 N-m, Cable Length 6 ft (1.8 m) |
$55.00 |
STPM-23-200-200-W
data
sheet |
Pre-Wired Stepping Motor, Size 23, 200 Steps per
Revolution, 200 oz-in, 1.45 N-m, Cable Length 6 ft (1.8 m) |
$65.00 |
|
Size 34 |
|
|
STPM-34-200-320-W
data
sheet |
Pre-Wired Stepping Motor, Size 34, 200 Steps per
Revolution, 320 oz-in, 2.30 N-m, Cable Length 6 ft (1.8 m) |
$135.00 |
|
More Rotary Stepping Motors... |
|
| Single Axis Linear Stepping Motor |
|
| STPM-SL-AABB-CX
data sheet |
Speeds up to 80 in /sec (2 m/sec) and Strokes up to 40” x 60” (1 m x 1.5 m) |
Call |
Stepping motors with gearbox and optical encoder are also
available.
Other sizes are available.
The pricing depends on the system configuration. Please contact
us for a prompt quotation.
