Motorized XYZ-axis Table

Home > Motorized Linear Stages > Low Cost Linear Three-axis Stages

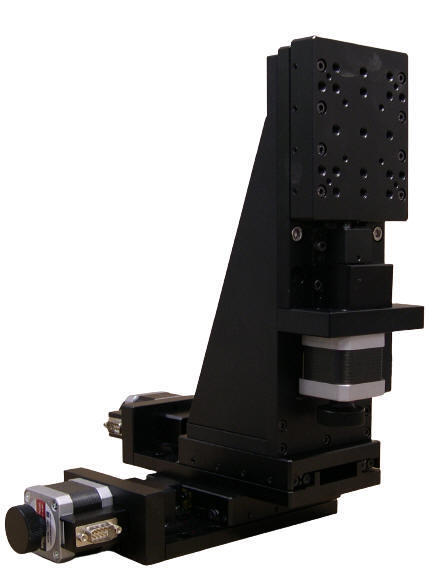

This three-axis motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 50 mm of travel at a maximum speed of 10 mm per second. The drive mechanism is lead screw.

The bench size is 90 X 110 mm and has a body weight of 5.2 Kg.

The maximum load of this stage table is 15 Kg.

The resolution of 0.5 μ is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of
Motion Controllers..



Specifications
Type

XYZ110-50

Structure Description

Travel

50 mm

Table Size 90110 mm
Lead Screw Pitch 1 mm per turn
Travel Guide

High Precision Crossed Roller

Motor

Two-Phase Stepper Motor (1.8)

Phase Resistance 3.8 Ohm, Bi-directional
Maximum Phase Current 1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Far Limit, Normally High, Active Low
3 Near Limit, Normally High, Active Low
4 Return for+5 VDC
5 Not Connected
6 Phase A+
7 Phase A-
8 Phase B+
9 Phase B-
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity
Weight 5.2 kg

Typical Accuracy

Resolution 0.5μ (10 Micro-steps per Step Motor Driver in use)
0.25 μ(20 Micro-steps per Step Motor Driver in use)
Maximum Speed 10 mm/sec
Repeatability 5 μ
Positional Accuracy 10 μ

Accessories Description

Limit Switches
Optical Encoder
Servo Motor (S)


Mechanical Drawing


 Ordering Information

Part No. Description Amount
XYZ110-50 Motorized Linear Three-axis Stage, Travel  : 50 mm Click to Get a Quote
