Motorized XYZ-axis Table

Home > Motorized Linear Stages > Low Cost Linear Three-axis Stages

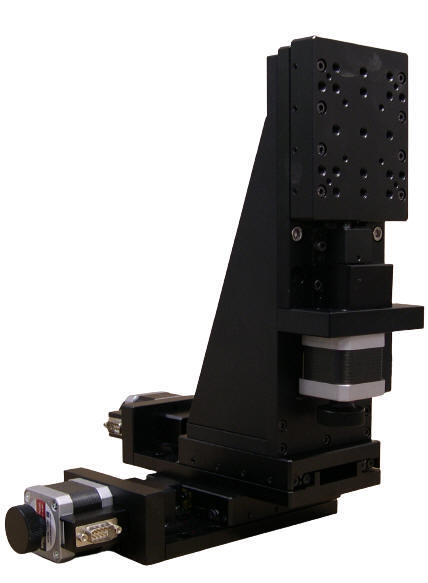

This three-axis motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 15 mm of travel at a maximum speed of 5 mm per second. The drive mechanism is lead screw.

The bench size is 65 X 65 mm and has a body weight of 4.6 Kg.

This linear stage is also available with a servo motor and optical encoder.


The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of
Motion Controllers..

Specifications
Type

XYZ110-15

Structure Description

Travel

15 mm

Table Size 65 mm 65 mm
Lead Screw Pitch 0.5 mm per turn
Travel Guide

High Precision Crossed Roller

Motor

Phase Resistance 3.8 Ohm, Bi-directional
Maximum Phase Current 1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Far Limit, Normally High, Active Low
3 Near Limit, Normally High, Active Low
4 Return for+5 VDC
5 Not Connected
6 Phase A+
7 Phase A-
8 Phase B+
9 Phase B-
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity
Weight 4.6 kg

Typical Accuracy

Resolution 0.25 / Step (10 Micro-steps per Step Motor Driver in use)
0.125μ(20 Micro-steps per Step Motor Driver in use)
Maximum Speed 5 mm / sec
Repeatability 3 μ
Positional Accuracy 10 μ

Accessories Description

Limit Switches
Optical Encoder
Servo Motor (S)


Mechanical Drawing


 Ordering Information

Part No. Description Amount
XYZ110-15 Motorized Linear Three-axis Stage, Travel  : 15 mm Click to Get a Quote
