Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

Manual Linear Positioning Stage Picture

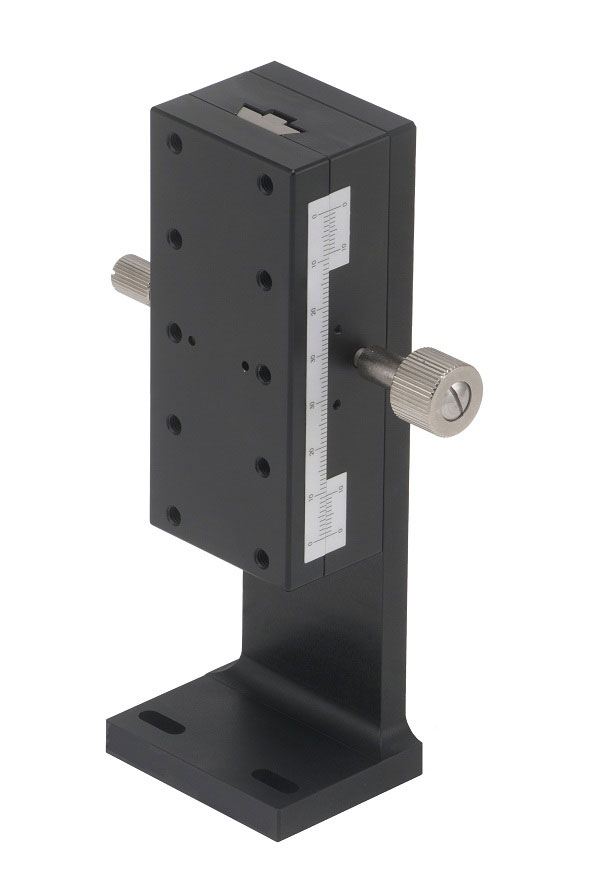

MC4B-140 manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 140 mm and have a body weight of 0.68.

The Load Capacity is 2.0kg.

The stroke is +/- 60 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

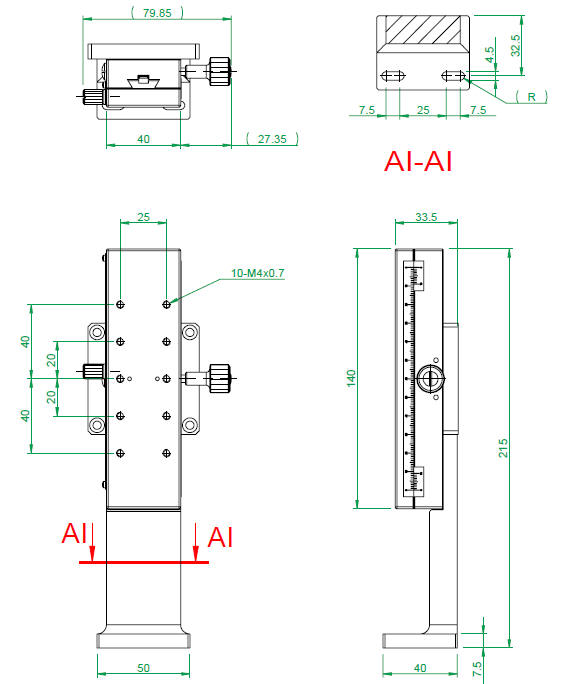

Specifications
  Unit: mm
Part No.. Table
Size
Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC4B-140

40 by 140 30 μm 2.0 0.68 Aluminum Alloy Black anodized +/-60 0.1mm / indicator


MC4B-140

 Ordering Information

Part No. Description Amount
MC4B-140 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-60 mm Click to Get a Quote
