Adapting Bracket

Home > Manual Stages > Adapting Plates > Adapting Brackets

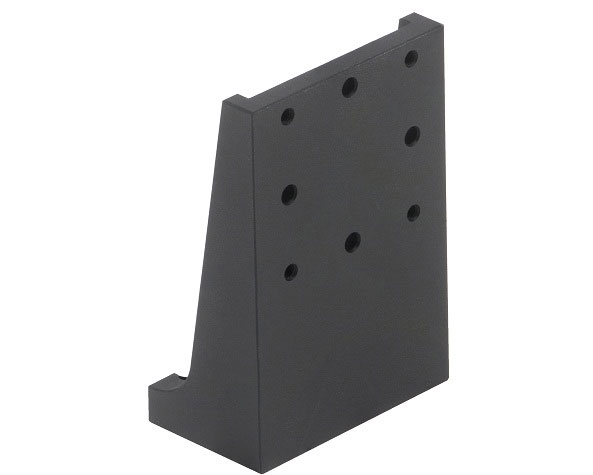

Adapting Bracket Picture

Specifications

Part No.. Fitted per feed position Weight
(kg)

Aluminum alloy + black anodized S50C + Ni CZ SZ SRZ SR S

AZB40-1 AZB40-1-N ● ● ● 0.08

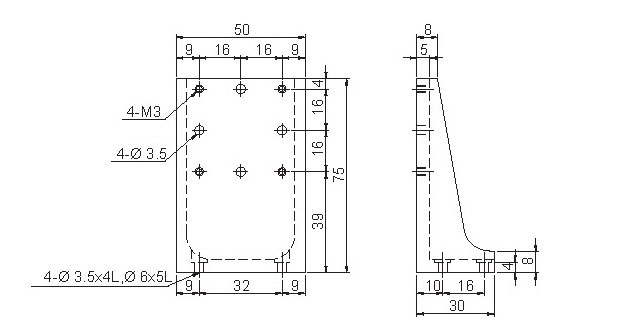

Mechanical Drawing

Adapting Brackets Mechanical Drawing

Ordering Information

Part No.	Description	Amount
AZB40-1	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB40-2	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB60-1	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB80-1	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB80-2	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB100-1	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB120-1	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB40-1-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB40-2-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB60-1-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB80-1-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB80-2-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB100-1-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
AZB120-1-N	Manual Stage, Adapting Plate, Adapting Brackets	Click to Get a Quote
