Linear Brushless Motors

Features
  • High Acceleration
  • High Speed
  • High Accuracy
  • Cog Free
  • High Repeatability
  • Independent Multiple Coil Operation with Overlapping Trajectories
  • No Metal-to-Metal Contact, Virtually Maintenance Free
  • Modular Magnet Tracks
  • Trapezoidal or Sinusoidal Commutation
  • Increased throughput, a Function of High Acceleration
Features
  • Exceptional Accuracy
  • Consistent Repeatability
  • Environmentally Friendly
  • Exceptionally High Force per Volume
  • Light Weight-to-Force Ratio
  • Quiet
  • Reduced Wear and Friction
  • Lower Repair and Maintenance Costs
  • High Operating Efficiency
  • Unlimited Stroke Length



Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C

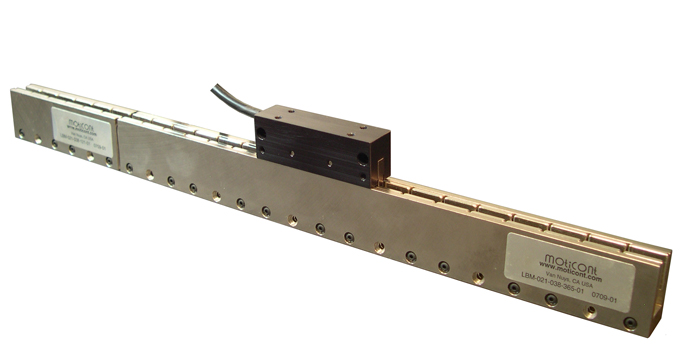

LBIM-021-01

8.7

lb 2.8  lb


38.7

N 12.2  N
Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C
LBIM-021-02

16.7

lb 5.3  lb


74.5

N 23.6  N
Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)


Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C

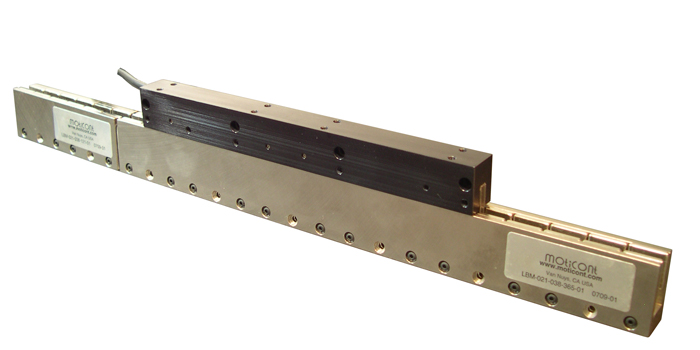

LBIM-021-03

31.6

lb 10.0  lb


140.6

N 44.5  N
Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C

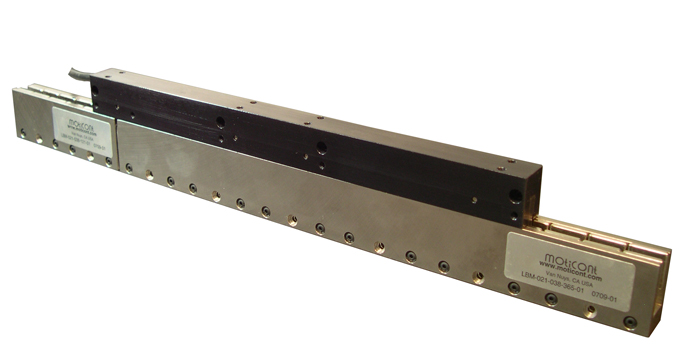

LBIM-021-04

29.4

lb 18.7 lb


130.8

N 41.4  N
Width: 1.25 in  (32 mm), Height: 2.25 in (57 mm)

Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C
LBIM-032-01

29.4

lb 9.3  lb


130.8

N 41.4  N

Width: 1.25 in  (32 mm), Height: 2.25 in (57 mm)



Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C

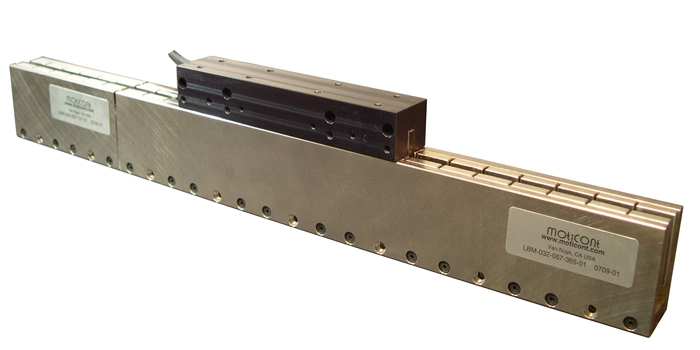

LBIM-032-02 55.3 lb 17.5 lb
  246.1 N 77.9 N

Width: 1.25 in  (32 mm), Height: 2.25 in (57 mm)


Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C

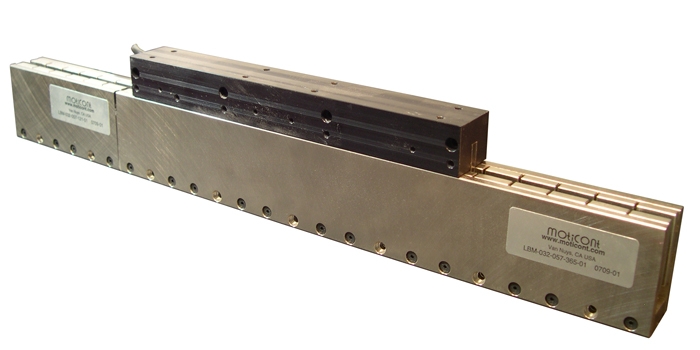

LBIM-032-03 81.0  lb 25.6  lb
  360.4  N 113.9  N

Width: 1.25 in  (32 mm), Height: 2.25 in (57 mm)



Linear Motor Model # Intermittent Force @ 10% Duty Cycle   Continuous Force @ 25 C

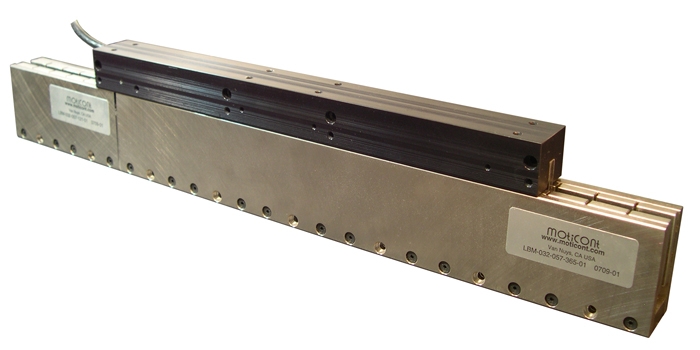

LBIM-032-04

108.0

lb

34.0

lb


480.6

N

151.3

N



x = Encoder Resolution in Lines per Revolution
