Precision Series Linear Actuators

Specifications

Related Products

Motion Controllers

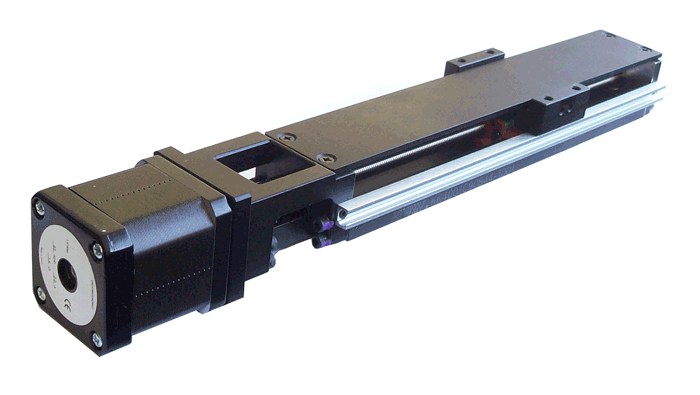

The LS series of linear actuators or linear stages is a slider actuated by a motor driven ball screw and guided by a linear guide way with a U-shape rail. The slider acts as the ball screw's nut and the guide way's block.

These actuators may be configured as X-Y, X-Z or X-Y-Z.

All the following actuators may be supplied with any of our stepping motors, brush DC motors and  brushless DC motors.

Motors with optical encoders are also available.
LS-40 Series
1.4" (36 mm) to 5.3" (136 mm) of Travel
Pitch of Lead Screw,  1 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-40-36
mechanical drawing		 Motorized Single-axis Stage with 36 mm of Travel, 1 mm per motor revolution, Home Switch, Motor Cable Length 6 ft (1.8 m). Inquire
LS-40-86
mechanical drawing		 Motorized Single-axis Stage with 86 mm of Travel, 1 mm per motor revolution, Home Switch, Motor Cable Length 6 ft (1.8 m). Inquire
LS-40-136
mechanical drawing 		Motorized Single-axis Stage with 136 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Inquire

 With Cover
Part No. Description

Amount
LS-40-36-C
mechanical drawing		 Motorized Single-axis Stage with 36 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Inquire
LS-40-86-C
mechanical drawing		 Motorized Single-axis Stage with 86 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Inquire
LS-40-136-C
mechanical drawing 		Motorized Single-axis Stage with 136 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50 Series
2.7" (70 mm) to 8.6" (220 mm) of Travel
Pitch of Lead Screw, 2 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-50-70
mechanical drawing		 Motorized Single-axis Stage with 70 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50-120
mechanical drawing		 Motorized Single-axis Stage with 120 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50-170
mechanical drawing 		Motorized Single-axis Stage with 170 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50-220
mechanical drawing		 Motorized Single-axis Stage with 220 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire

 With Cover
Part No. Description

Amount
LS-50-70-C
mechanical drawing		 Motorized Single-axis Stage with 70 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50-120-C
mechanical drawing		 Motorized Single-axis Stage with 120 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50-170-C
mechanical drawing		 Motorized Single-axis Stage with 170 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-50-220-C
mechanical drawing		 Motorized Single-axis Stage with 220 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60 Series
 2.3" (60 mm) to 21" (535 mm) of Travel
Pitch of Lead Screw,  5 and 10 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-60-60
mechanical drawing		 Motorized Single-axis Stage with 60 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-60-85
mechanical drawing		 Motorized Single-axis Stage with 85 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-110
mechanical drawing		 Motorized Single-axis Stage with 110 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-60-135
mechanical drawing		 Motorized Single-axis Stage with 135 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-210
mechanical drawing 		Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-60-235
mechanical drawing		 Motorized Single-axis Stage with 235 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-310
mechanical drawing		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-60-335
mechanical drawing		 Motorized Single-axis Stage with 335 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-410
mechanical drawing		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-435
mechanical drawing		 Motorized Single-axis Stage with 435 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-60-510
mechanical drawing		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-535
mechanical drawing		 Motorized Single-axis Stage with 535 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire

 With Cover
Part No. Description

Amount
LS-60-60-C
mechanical drawing		 Motorized Single-axis Stage with 60 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-85-C
mechanical drawing		 Motorized Single-axis Stage with 85 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-110-C
mechanical drawing		 Motorized Single-axis Stage with 110 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-135-C
mechanical drawing		 Motorized Single-axis Stage with 135 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-210-C
mechanical drawing 		Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-235-C
mechanical drawing		 Motorized Single-axis Stage with 235 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-310-C
mechanical drawing		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-335-C
mechanical drawing		 Motorized Single-axis Stage with 335 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-410-C
mechanical drawing		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-435-C
mechanical drawing		 Motorized Single-axis Stage with 435 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-510-C
mechanical drawing		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-60-535-C
mechanical drawing		 Motorized Single-axis Stage with 535 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-86 Series
8.2" (210 mm) to 27.9" (710 mm) of Travel
Pitch of Lead Screw, 10 and 20 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-86-210
mechanical drawing		 Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-86-310
mechanical drawing		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-86-410
mechanical drawing		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-86-510
mechanical drawing		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-86-610
mechanical drawing 		Motorized Single-axis Stage with 610 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire
LS-86-810
mechanical drawing		 Motorized Single-axis Stage with 810 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Inquire

 With Cover
Part No. Description

Amount
LS-86-210-C
mechanical drawing		 Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-86-310-C
mechanical drawing		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-86-410-C
mechanical drawing		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-86-510-C
mechanical drawing		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-86-610-C
mechanical drawing		 Motorized Single-axis Stage with 610 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-86-810-C
mechanical drawing		 Motorized Single-axis Stage with 810 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100 Series
32.5" (828 mm) to 48.3" (1228 mm) of Travel
Pitch of Lead Screw, 10 and 20 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-100-828
mechanical drawing		 Motorized Single-axis Stage with 828 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-928
mechanical drawing		 Motorized Single-axis Stage with 928 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-1028
mechanical drawing		 Motorized Single-axis Stage with 1028 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-1128
mechanical drawing		 Motorized Single-axis Stage with 1128 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-1228
mechanical drawing 		Motorized Single-axis Stage with 1228 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire

 With Cover
Part No. Description

Amount
LS-100-828-C
mechanical drawing		 Motorized Single-axis Stage with 828 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-928-C
mechanical drawing		 Motorized Single-axis Stage with 928 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-1028-C
mechanical drawing		 Motorized Single-axis Stage with 1028 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-1128-C
mechanical drawing		 Motorized Single-axis Stage with 1128 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire
LS-100-1228-C
mechanical drawing		 Motorized Single-axis Stage with 1228 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Inquire

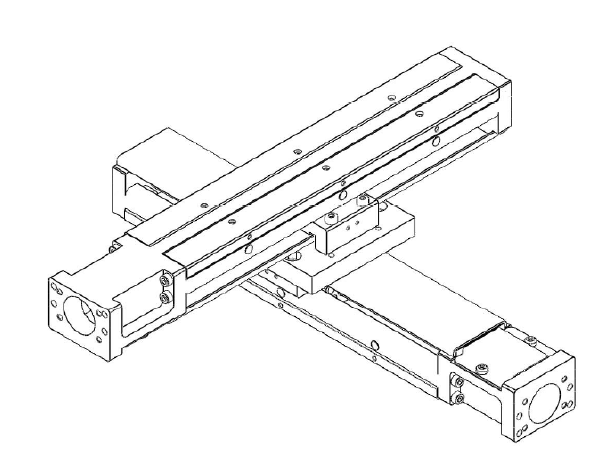

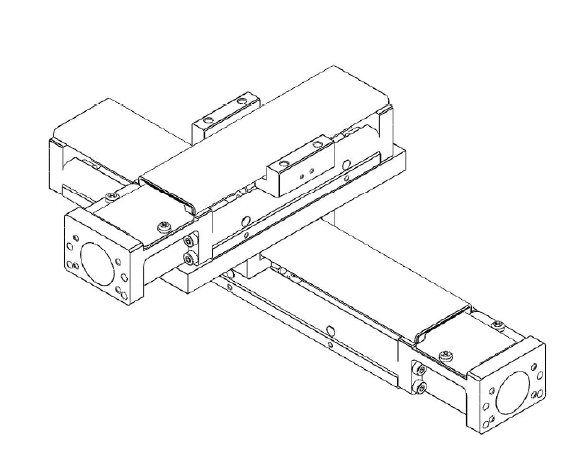

X-Y Configuration

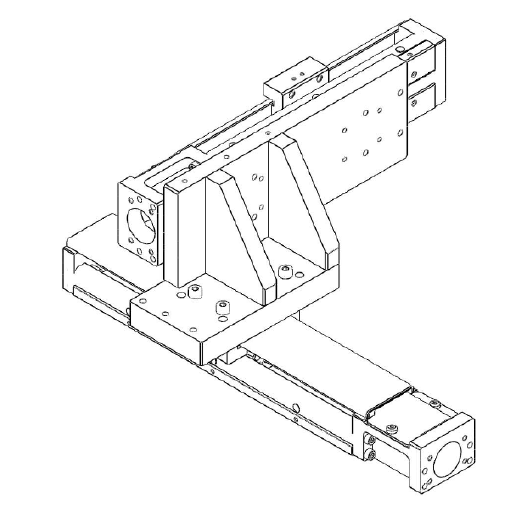

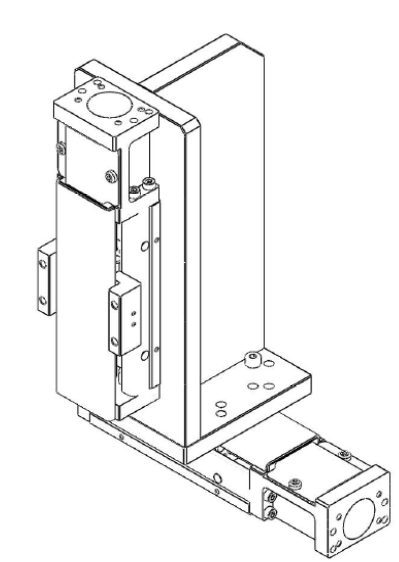

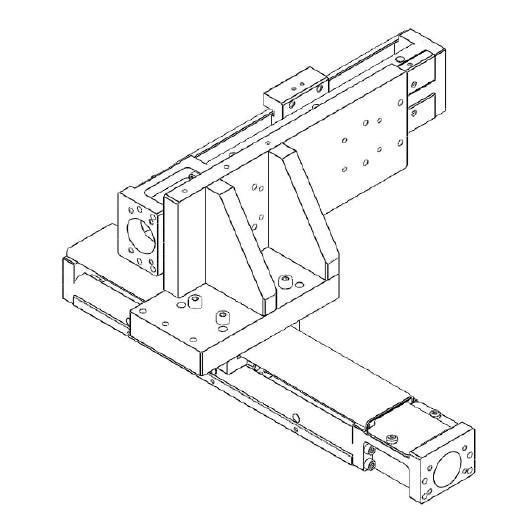

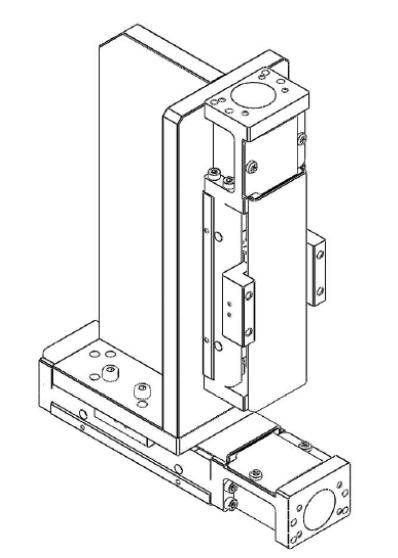

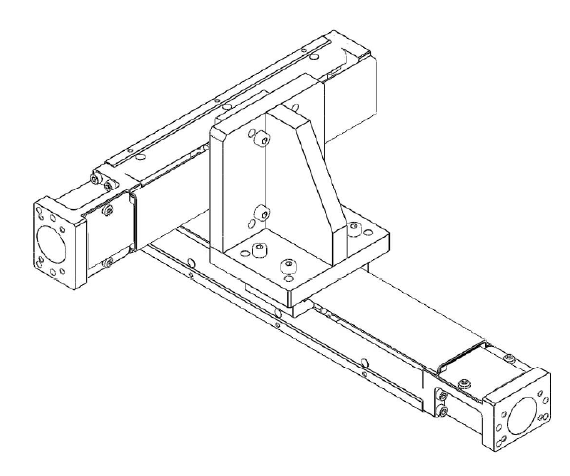

X-Z Configuration



Customized solutions can be provided upon request.
