• Point-to-Point Positioning
• Jogging
• Contouring
• Electronic Gearing
• Electronic Cam

• Up to 4 Axes

Range of Motion Parameters

• Position: +/- 2147483648 Steps
• Velocity: 200 - 200 KHz Step Rate
• Acceleration: 40,000 - 40 Million Steps / sec²

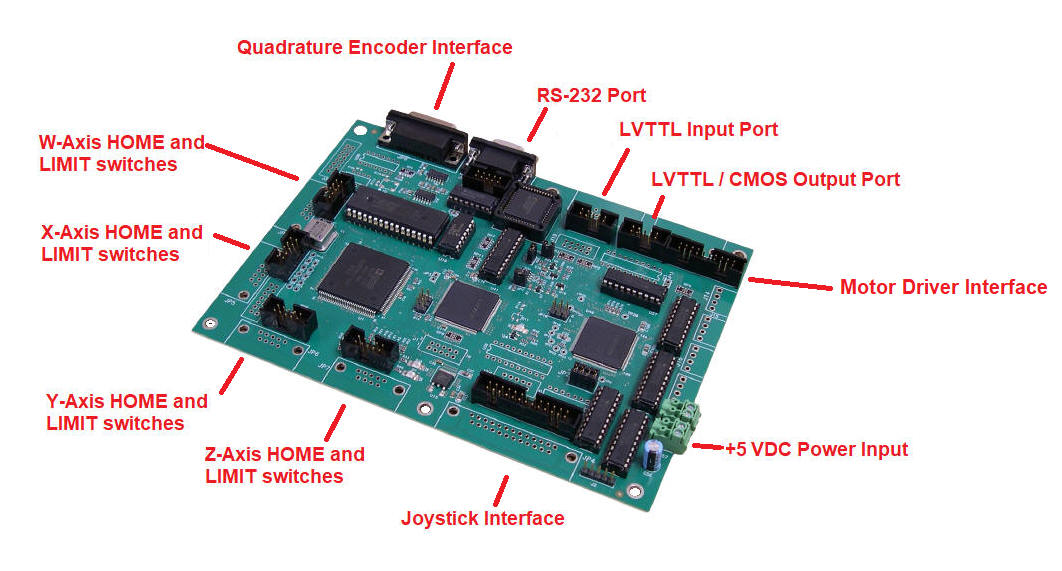

Communication Interface

• RS-232 Interface

• Easy System Setup and Evaluation
• Menu Driven

Mechanical

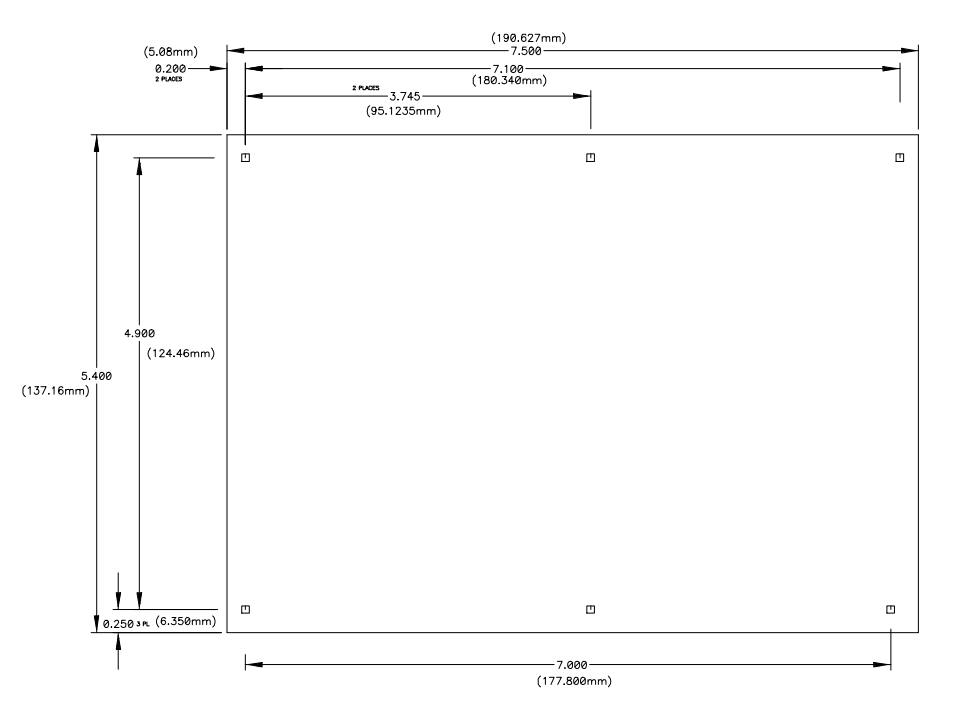

• Size: 5.40 " (137 mm) X 7.50 " (191 mm)

Power Requirement

• +5 VDC or +7.5 to +40 VDC
• 2 Watts Power Consumption


• Positive and Negative Limit Switches per Axis
• Home Switch per Axis
• CONTINUE, END, RUN, STOP, and UPLOAD-and-RUN for Stand-alone Mode Operation

Dedicated Outputs

• Pulse, Direction, and Driver Enable Outputs per Axis
• Fault LED Output

General Purpose Digital Input / Output

• 16 TTL / CMOS Inputs
• 16 TTL / CMOS Outputs

General Purpose Analog Input

• 3 Inputs
• 8 Bits of Resolution
• Adjustable Gain
• Offset Adjustment Potentiometer for each Input

Memory

• Up to 448 KB of non-Volatile Flash ROM
• 22 General Purpose Variables, 32 bit Resolution
• 7500 Bytes of Program Memory
