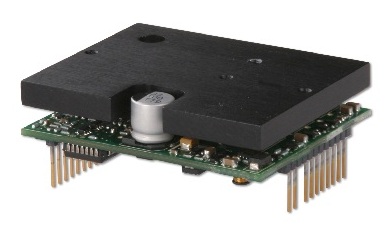

DC and Brushless Servo Motor
Driver
|
|
 |
|
Related Products
|
Features
- Runs DC and Brushless Servo
Motors
- Four Quadrant Regenerative
Operation
- Lightweight
- High Switching Frequency
- Wide Temperature Range
- High Performance Thermal DissipationDifferential Input Command
- Digital Fault Output Monitor
- Current Monitor Output
- Single Supply Operation
- Compact Size
- High Power Density
+10 VDC to +80 VDC Power Supply
Protected Against Over Current
0 șC to 70 șC Operating Temperature
|
Hardware Protection
- Over-Voltage
- Over-Current
- Over-Temperature
- Short-circuit (phase-phase)
- Short-circuit (phase-ground)
Inputs/Outputs
- Digital Fault Output
- Digital Inhibit Input
- Analog Current Monitor
- Analog Command Input
- Analog Current Reference
Compliances and Agency Approvals
- UL
- cUL
- CE Class A (LVD)
- CE Class A (EMC)
- RoHS
|
|
This series is a high performance, cost effective servo motor driver to
implement intelligent Motion Control. The driver incorporates an advanced
architecture and surface mount technology to achieve an exceptional power
density.
The
SRVODRV-8012 PWM
servo drive is designed to drive brushless DC motors at a high switching
frequency. To increase system reliability and to reduce cabling costs,
the drive is designed for direct integration into your PCB. The
SRVODRV-8012is
fully protected against over-voltage, over-current, over-heating, and
short-circuits. A single digital output indicates operating status. The
drive interfaces with digital controllers that have analog +/-10V
output. This servo drive requires only a single unregulated isolated DC
power supply, and is fully RoHS (Reduction of Hazardous Substances)
compliant.
|

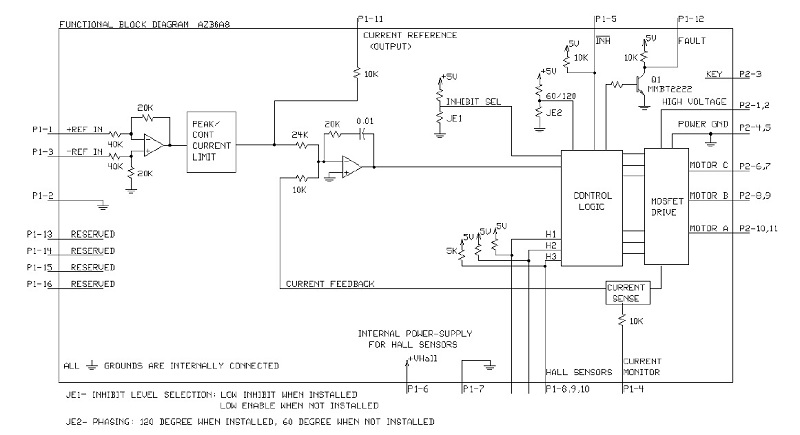

Block Diagram
|
 |

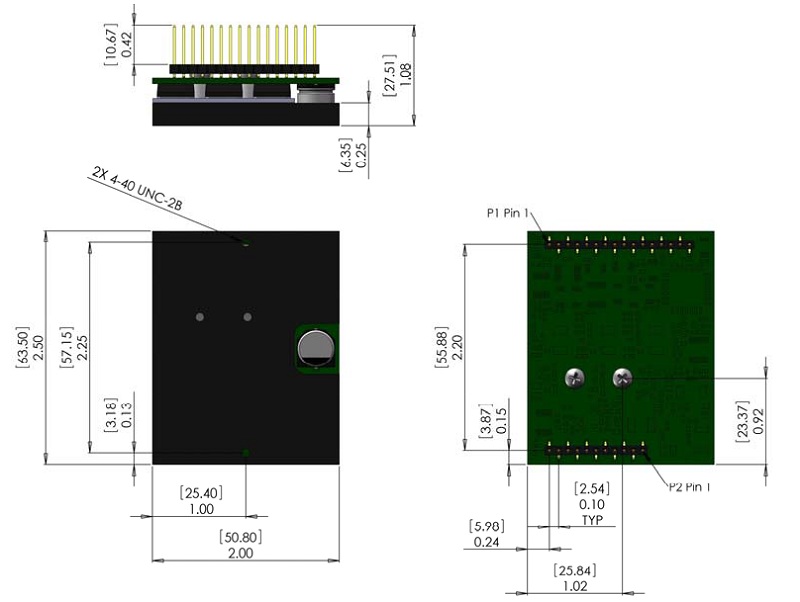

Mechanical Dimensions
|
 |
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
SRVODRV-8012 |
|
Inquire |
|
